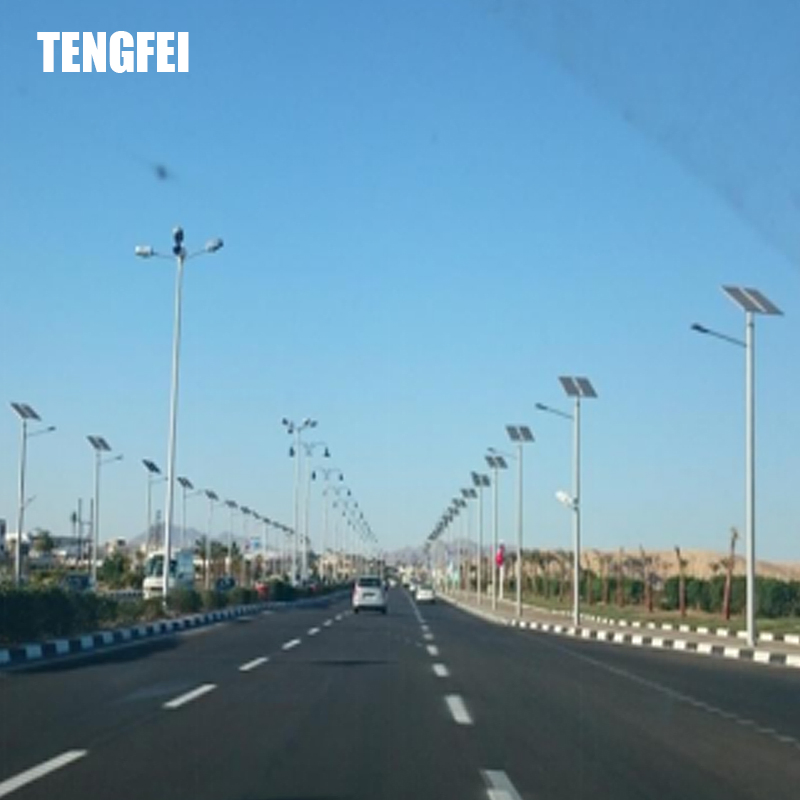

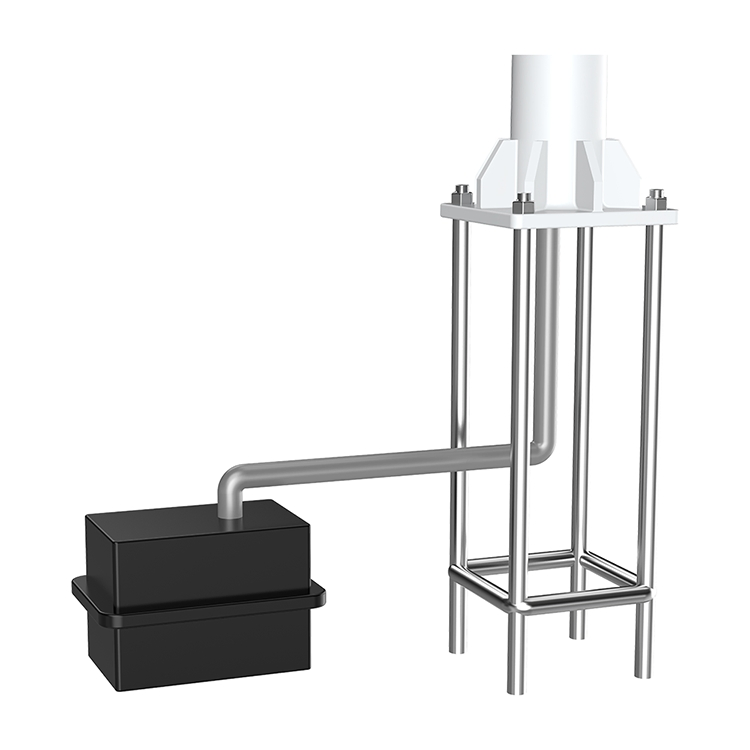

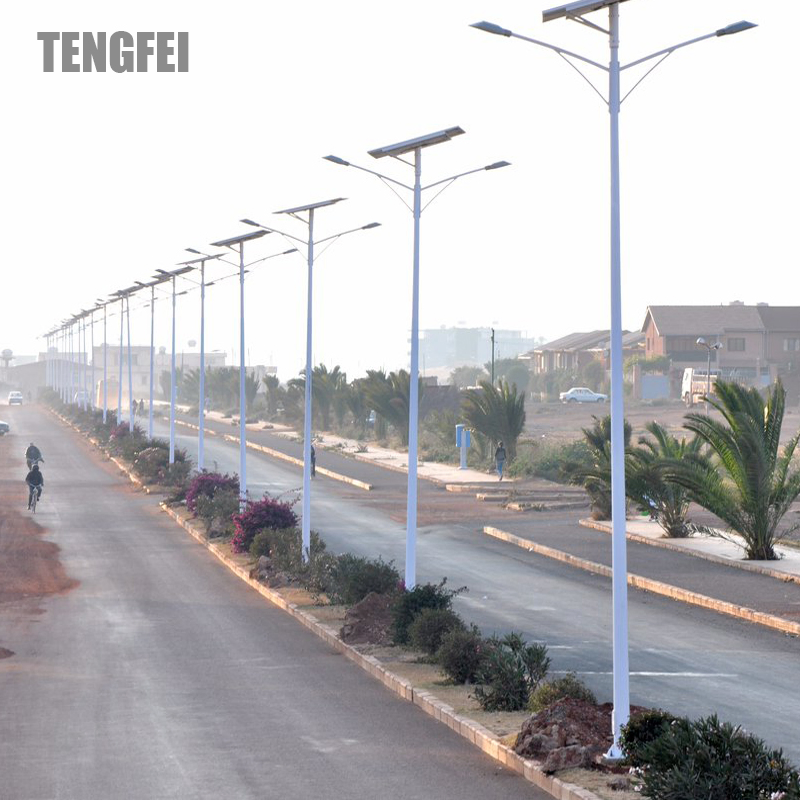

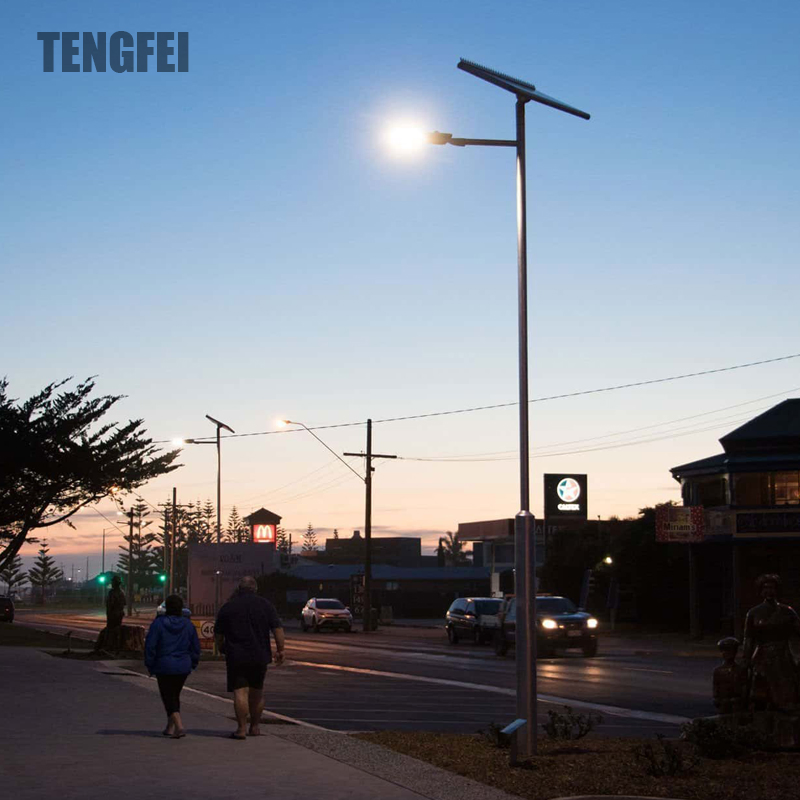

3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
1 / 5
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery
3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery

3 Years Warranty IP65 Factory Price 9m Pole Double 30-60W LED/HD Power Outdoor Split Solar Street Light Road Lamp with Underground Gel Battery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
001
Light Source
LED Lamp, Energy-Saving Lamp
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Cool White, Warm White, Pure White
Power
≥30W
Illumination Time
6h - 12h/Night
Cell Type
LiFePO4 Lithium Battery
IP Rating
IP65
LED Power
80W
Luminous Efficiency
160lm/W
Sensor
Motion Sensor + Light Sensor + APP Remote Control
Solar Panel
Mono Type, 22.5% Efficiency
Working Temperature
-25℃ to +60℃
Lifespan
8-10 Years
Pole
Hot DIP Galvanized 10m

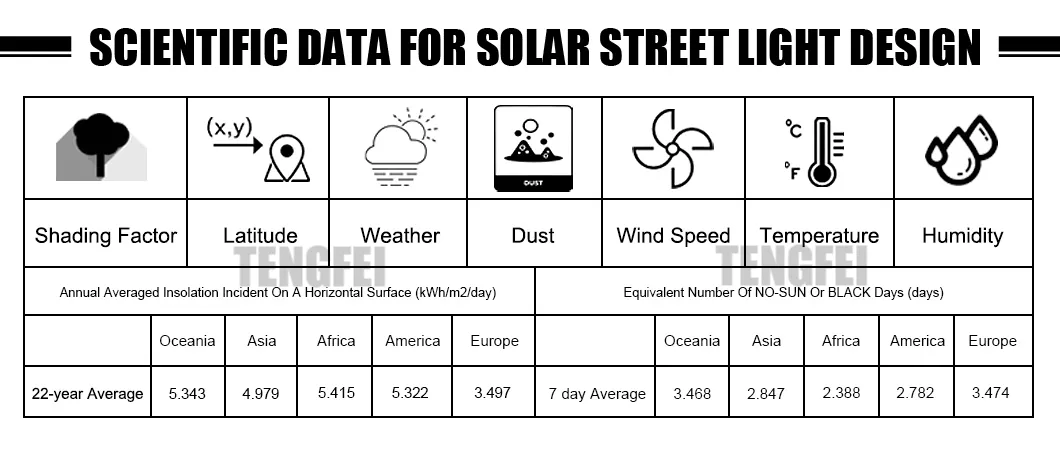

Design Factors

Solar Street Light Design Design Factors

Product Parameters (10M Pole 80W LED Sample)

NO. Components Specification Life Span QTY

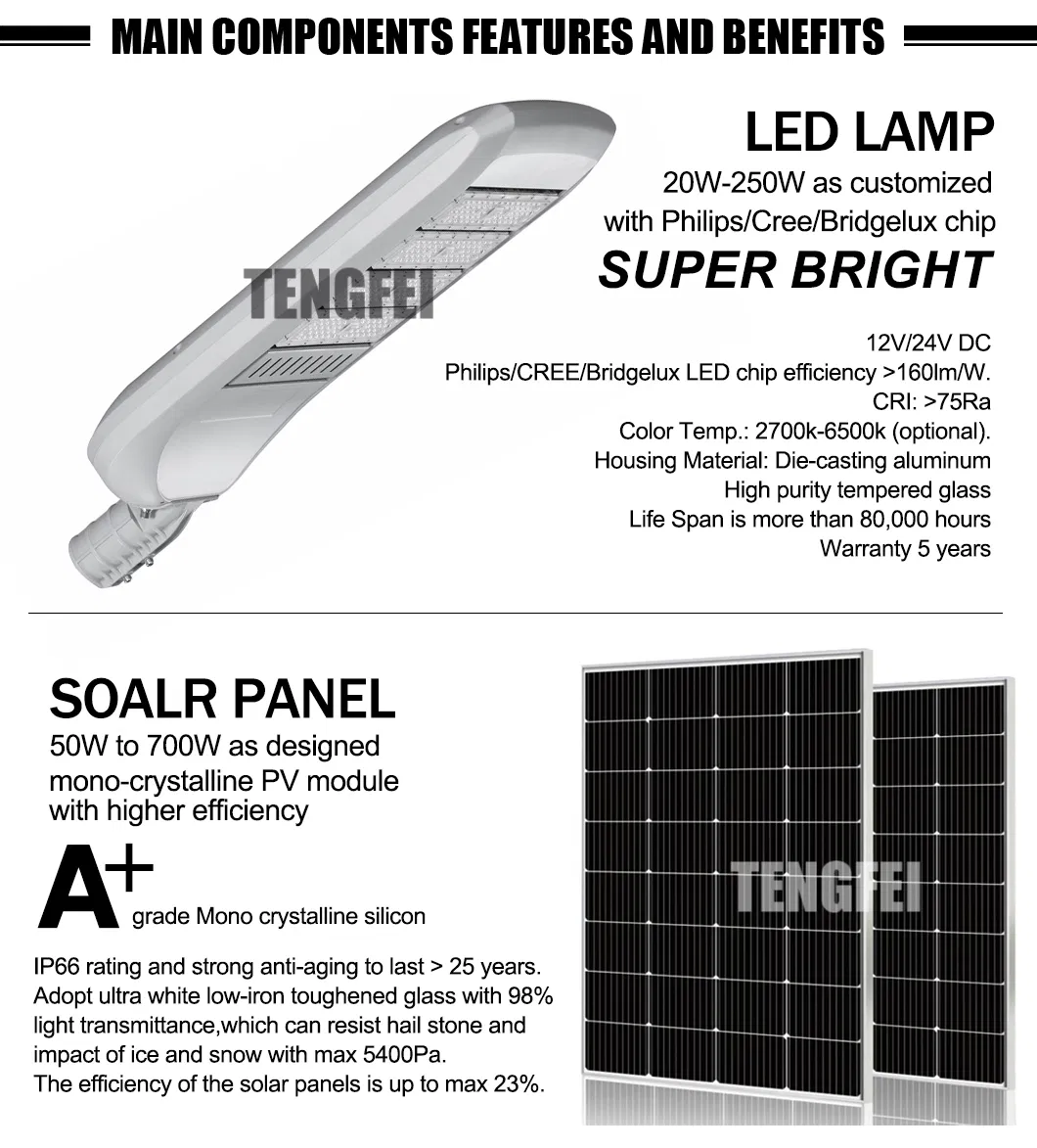

1 Solar Panel 270W/36V, Mono Crystalline, >22.12% Efficiency >25 years 1pc
2 LED Lamp 80W-24V, Famous Brand 3030/5050, 160LM/W, 3700K-6500K, IP66-IP68 >80,000 hrs 1pc
3 Lighting Pole 10M conical, single arm, Q235 Steel, Hot dip galvanized, Powder coating >25 years 1pc
4 Solar Panel Bracket Detachable, Q235 steel, Hot dip galvanized, Powder coating >25 years 1pc
5 Foundation Kit Detachable, Q235 steel >25 years 1pc

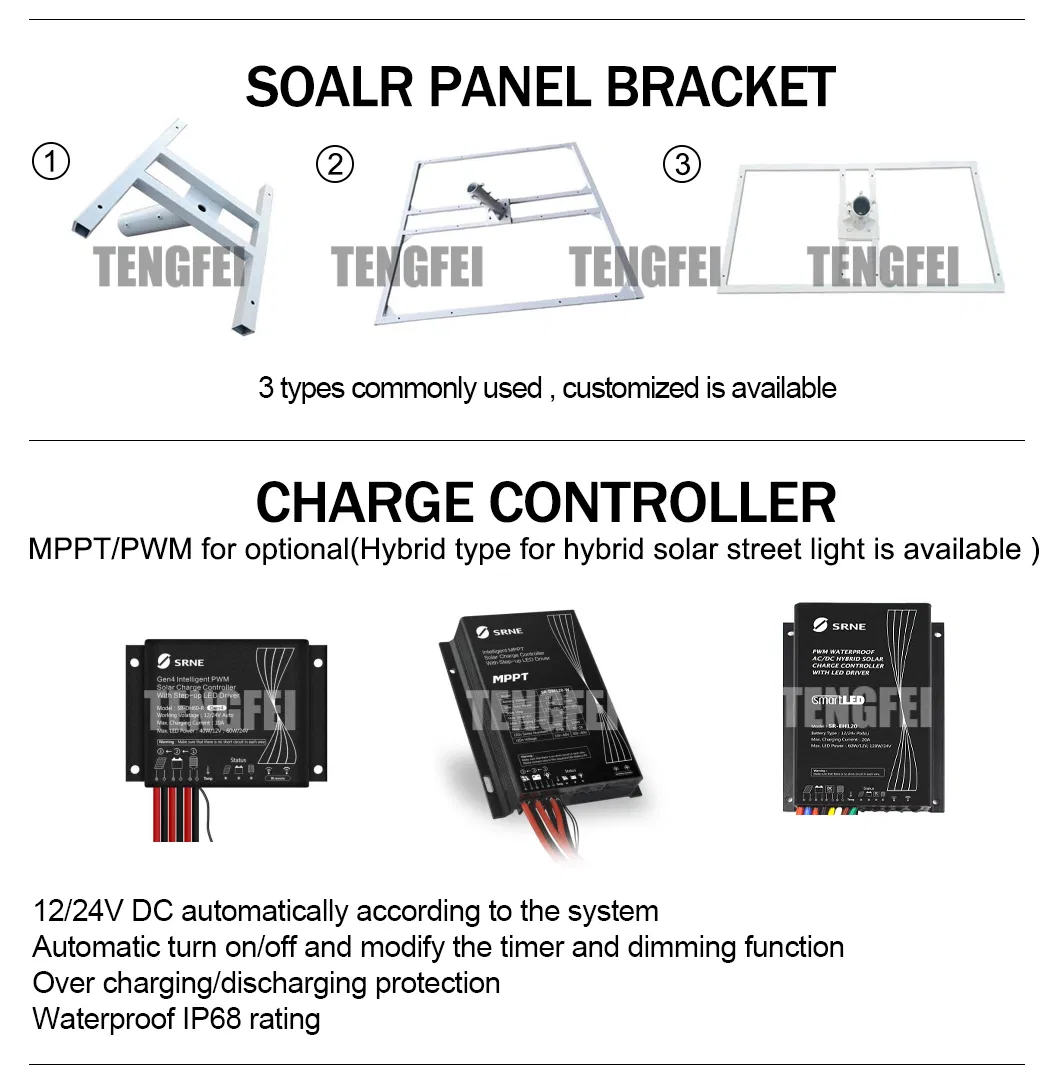

6 Charge Controller 15A, Automatic dusk to dawn auto dimming >8 years 1pc
7 Battery Option 1 120AH/12V * 2PCS GEL battery, Deep cycle >10 years 1pc
8 Battery Option 2 84AH/25.6V LiFePO4 battery, Long cycle lifespan 5-10 years 1pc
  • Working: 10-12hrs/night at intelligent working mode (2-3 overcast days).
  • Pole height: 3M to 12M options available; 15M-50M for high mast.
  • LED power: 15W to 150W options available.
  • Customized design and remote function are optional.

Product Detailed Description

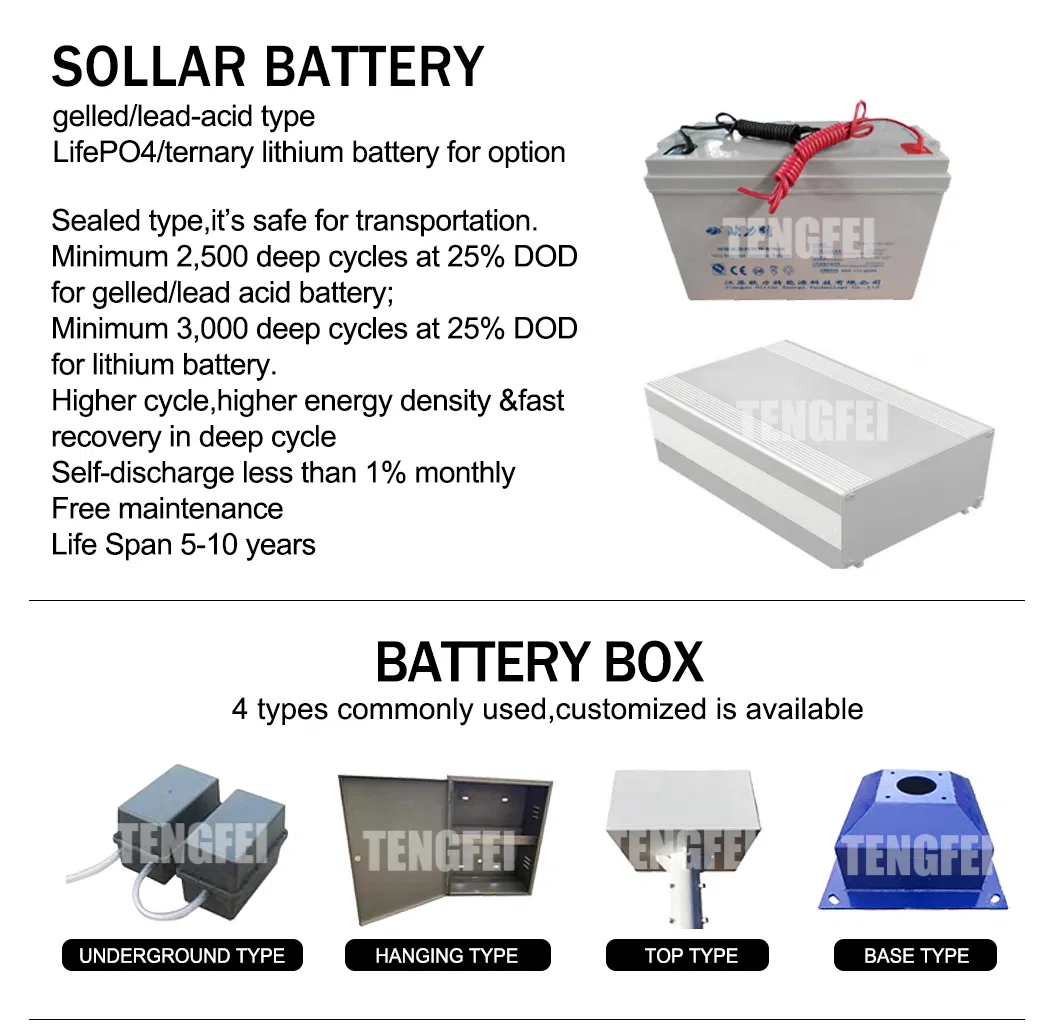

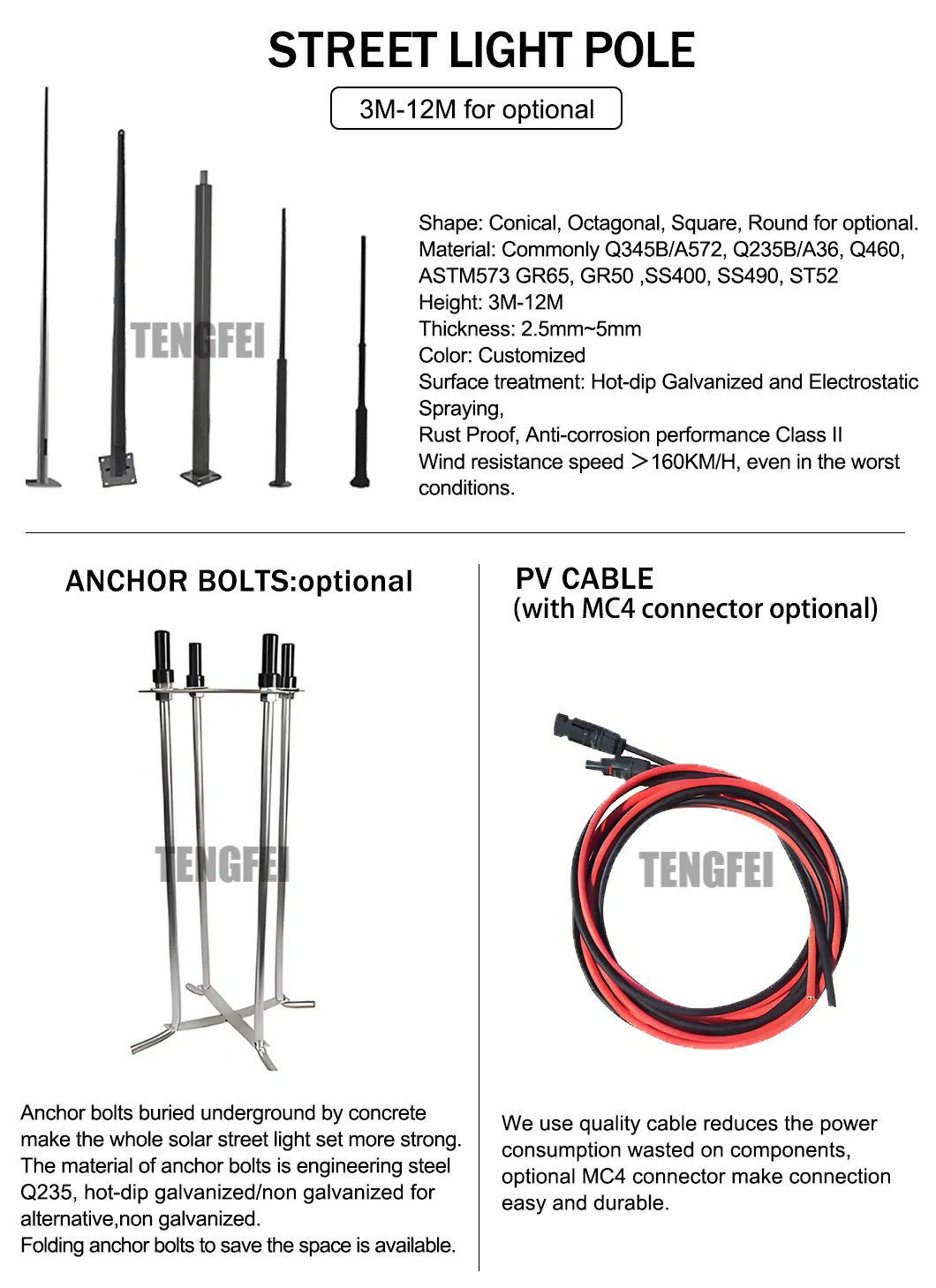

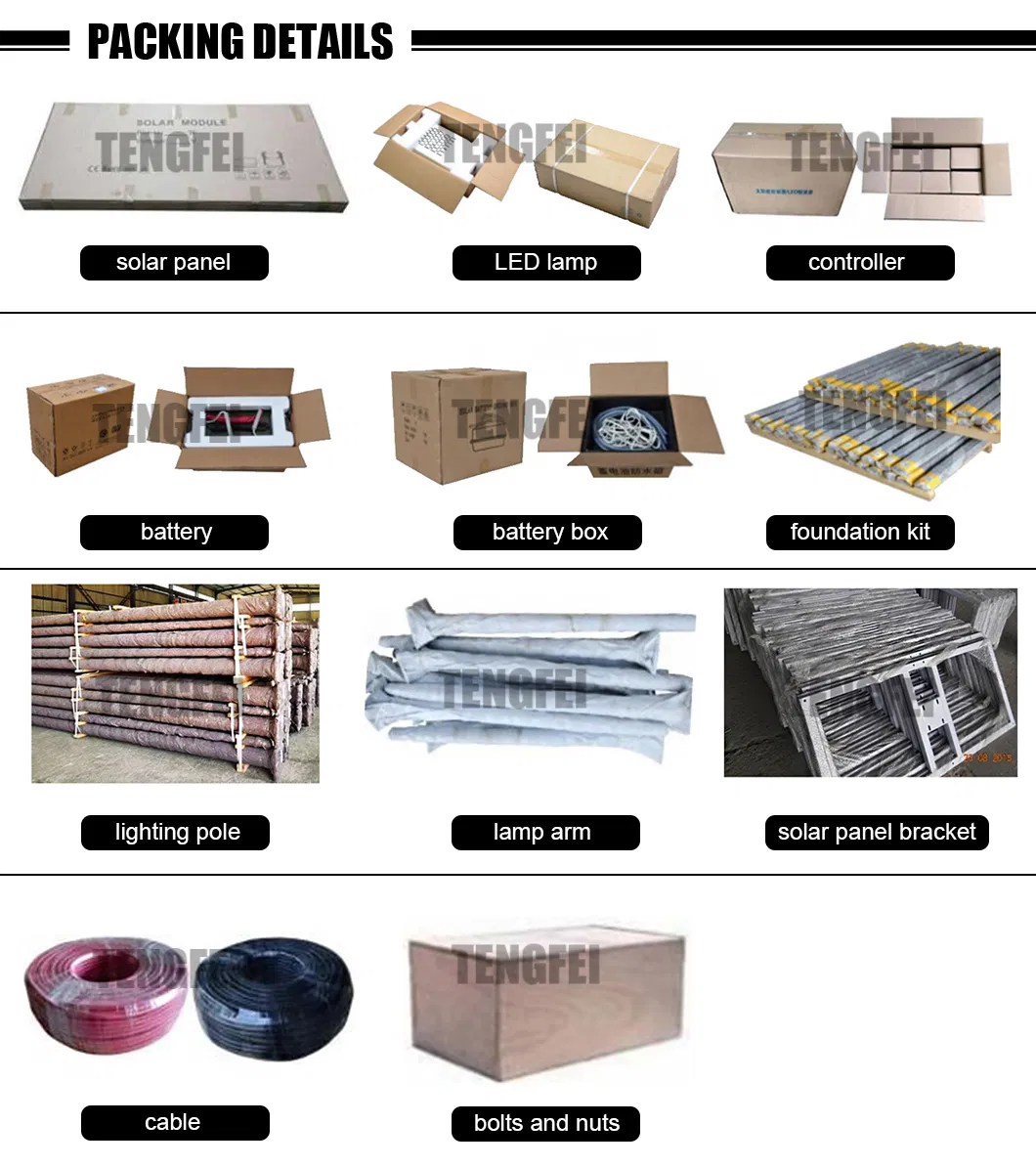

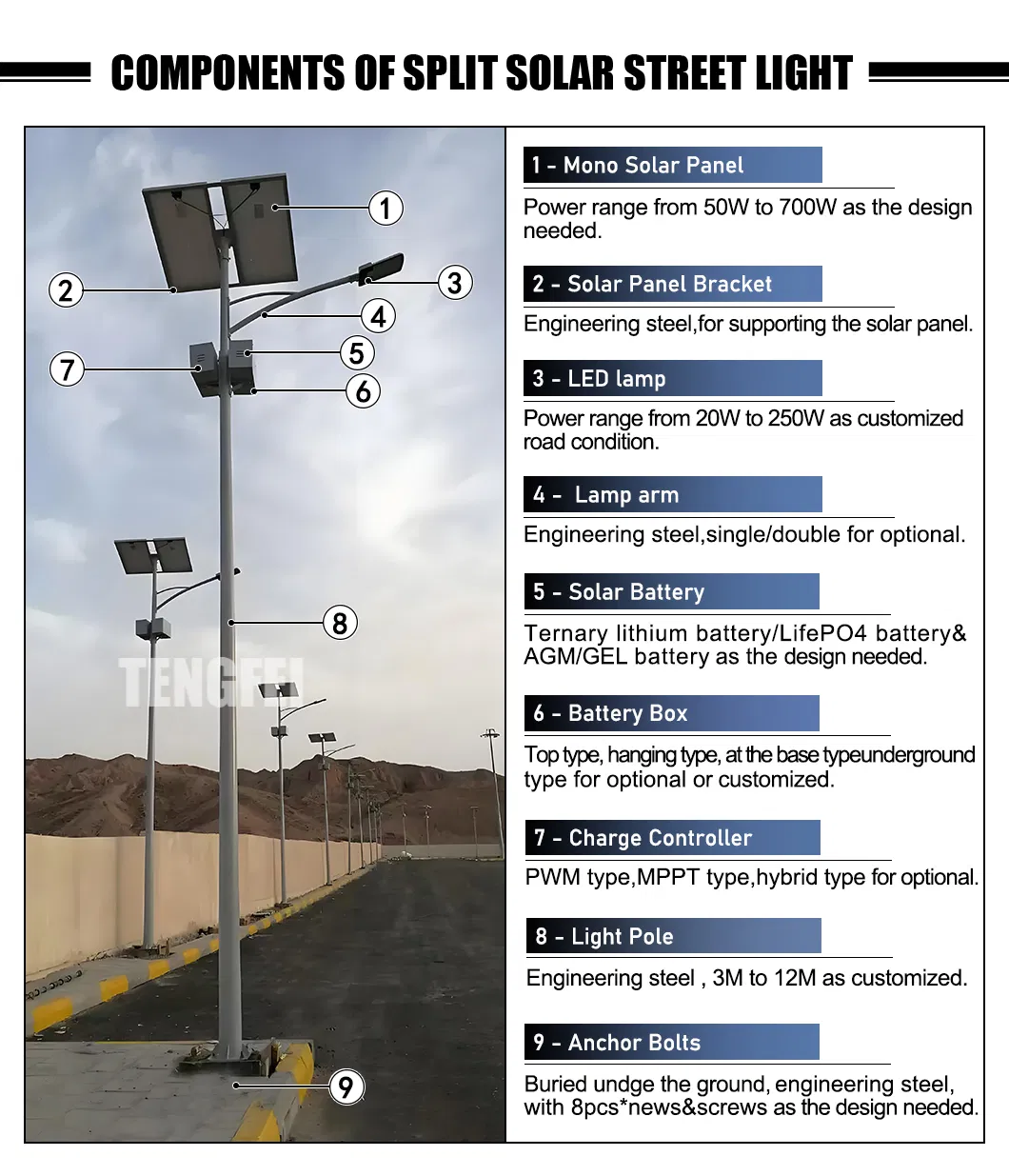

Product Description 1 Product Description 2 Product Description 3 Product Description 4 Product Description 5 Product Description 6

Professional Features & Advantages

Advantage 1 Advantage 2 Advantage 3 Advantage 4 Advantage 5 Advantage 6

Frequently Asked Questions

What is the standard working time for this solar street light?
The system is designed to work for 10-12 hours per night using an intelligent working mode. It can also sustain 2-3 overcast days.
What is the expected lifespan of the core components?
The solar panels and lighting poles have a lifespan of over 25 years, while the LED lamps are rated for over 80,000 hours. Batteries typically last between 5 to 10 years depending on the type (GEL or LiFePO4).
Are the solar street lights waterproof and durable?
Yes, the system features an IP65 to IP68 rating, ensuring complete protection against dust and water. The poles are made of Q235 steel with hot-dip galvanization and powder coating for rust-proof durability.
Can I customize the pole height and LED power?
Absolutely. We offer pole heights ranging from 3M to 12M for standard streets and up to 50M for high mast requirements. LED power can be customized from 15W up to 150W.
Does the light feature any smart control options?
Yes, the lighting system includes a motion sensor, light sensor, and optional APP remote control for convenient management.
What certifications do these products hold?
Our products are fully certified with CE, RoHS, FCC, PVOC, CCC, IEC, CQC, ISO, and LVD standards.
