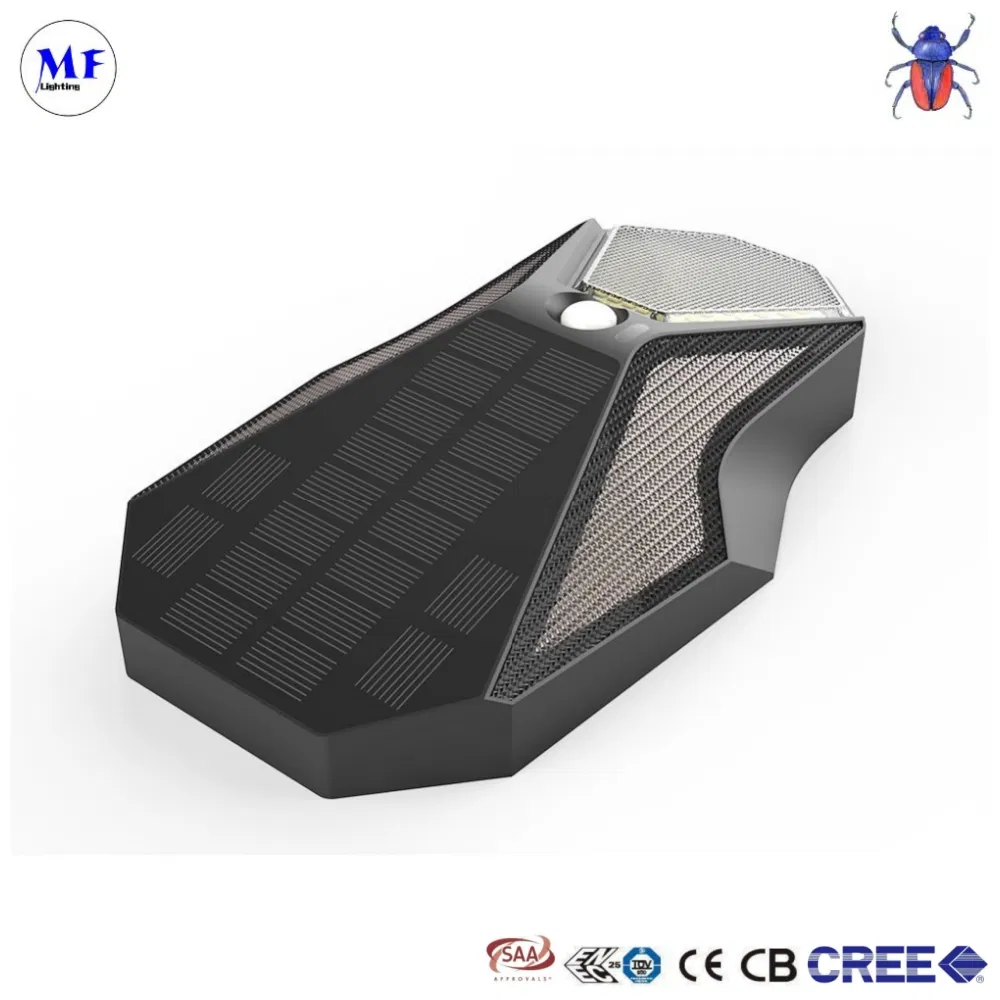

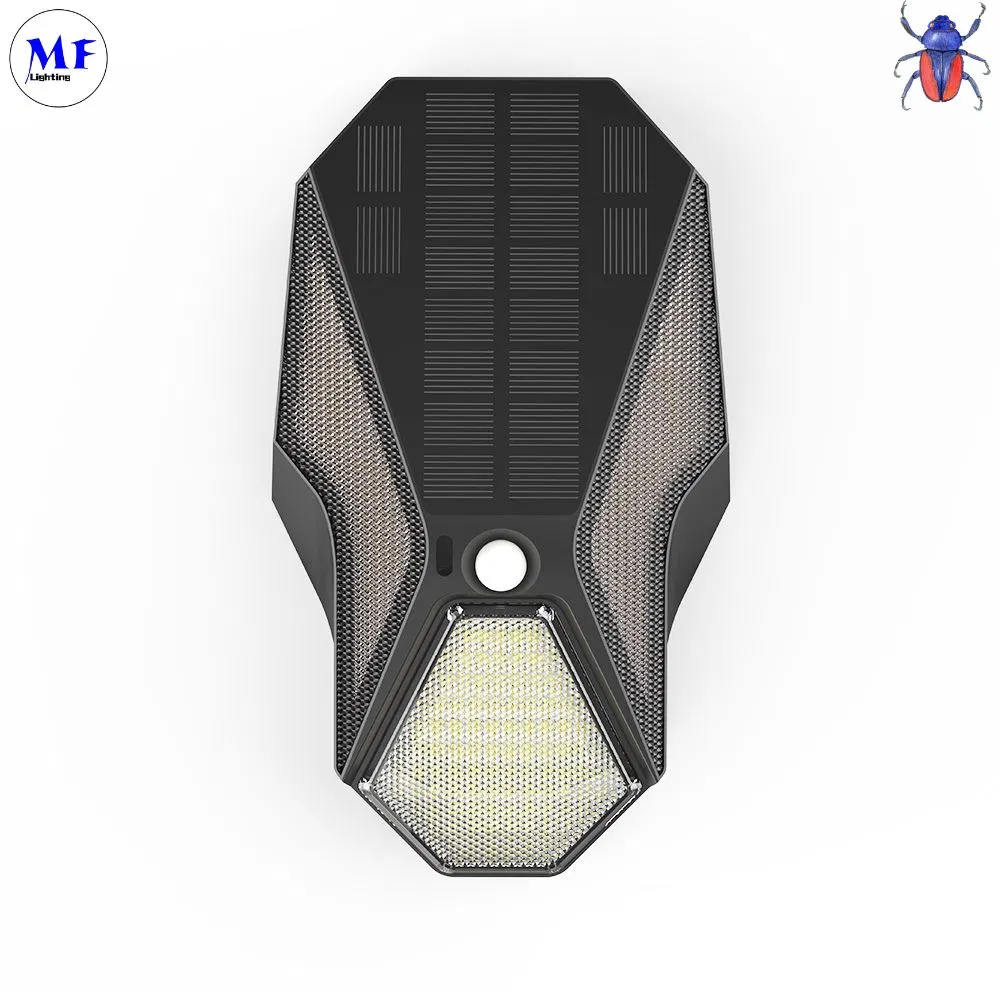

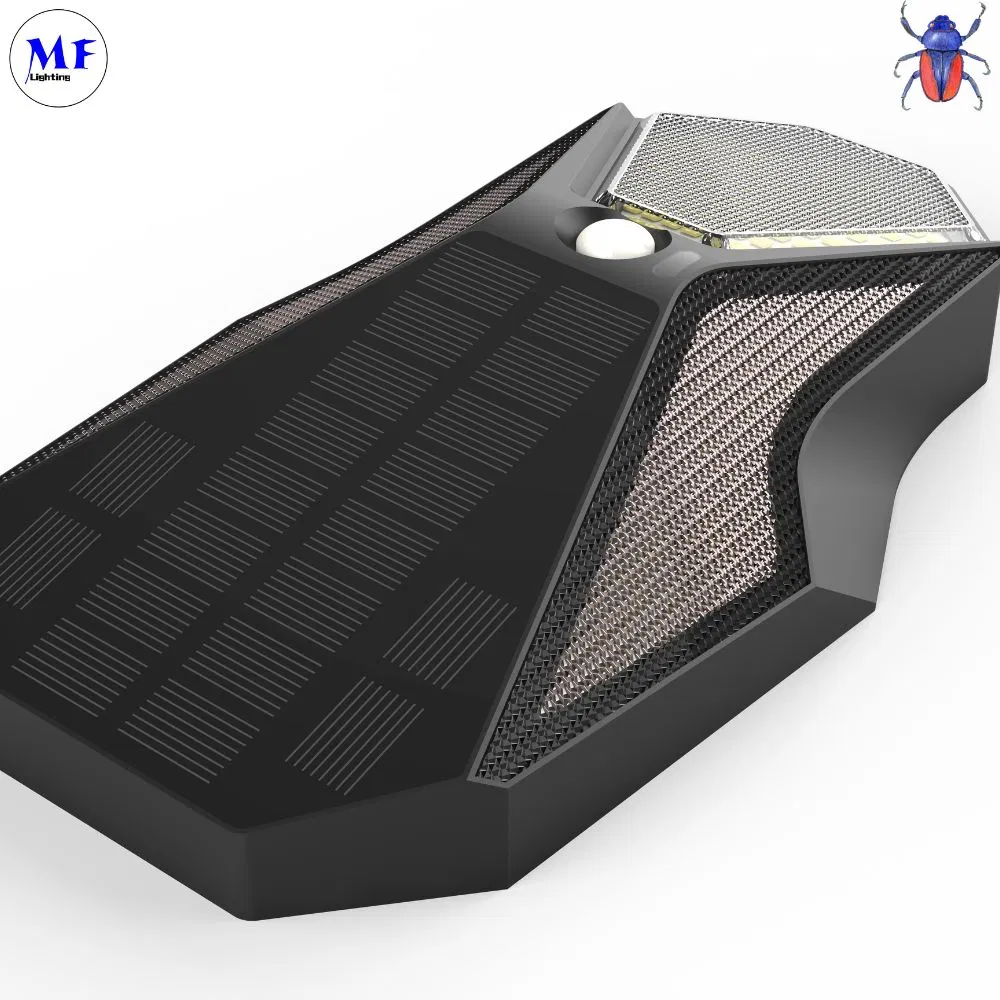

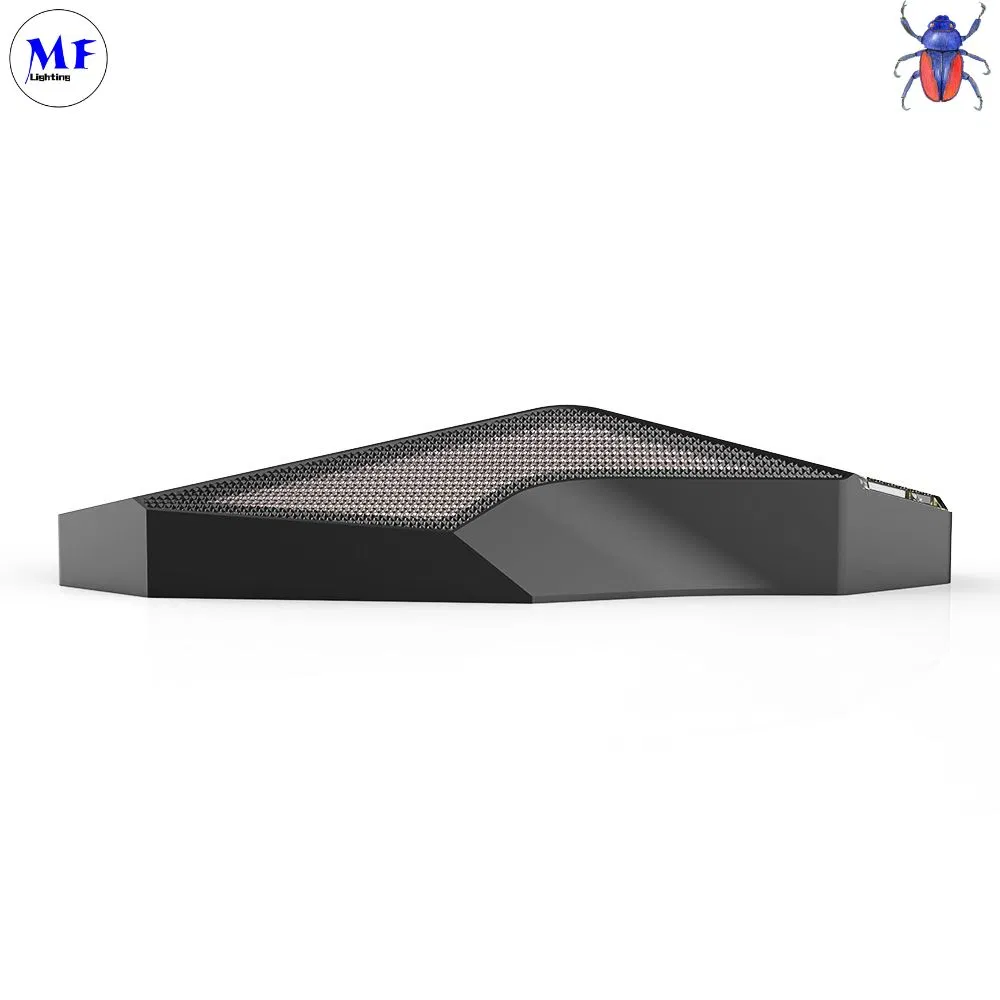

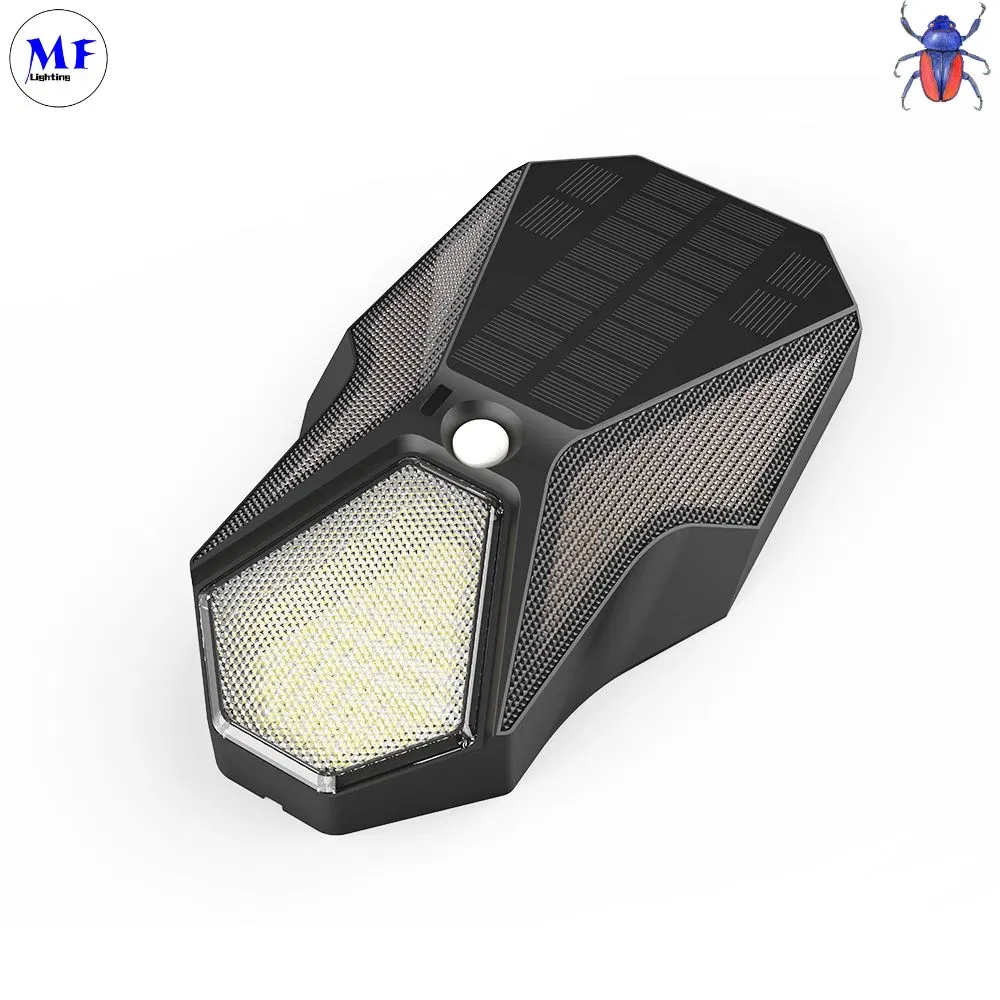

Eco PIR Sensor Outdoor Weather Resistant Waterproof IP65 Long-Lasting Battery Life LED Solar Wall Light for Terrace Fence Landscape Parking Lot Exterior Wall

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
MF Beetle Solar Wall Light
Light Source
LED Lamp
Material
ABS+Aluminum+PC
Color Temperature
6500K / 3500K
Illumination Time
72h
Battery
18650 3.7V 1800mAh Lithium
Charging Time
6 Hours
IP Rating
IP44 / IP65
Solar Panel
5.5V 400mA 1.8W Monocrystalline
Weight
120g

Product Features

Eco PIR Sensor Outdoor Solar Wall Light: A weather-resistant, waterproof lighting solution designed for terraces, fences, landscapes, and parking lots. Features long-lasting battery life and original patented industrial design.

No wiring required for easy installation.
High charging efficiency with monocrystalline silicon cells.
Future industrial visual style inspired by alien-head aesthetics.
Dual lighting modes: atmosphere and scene lighting.

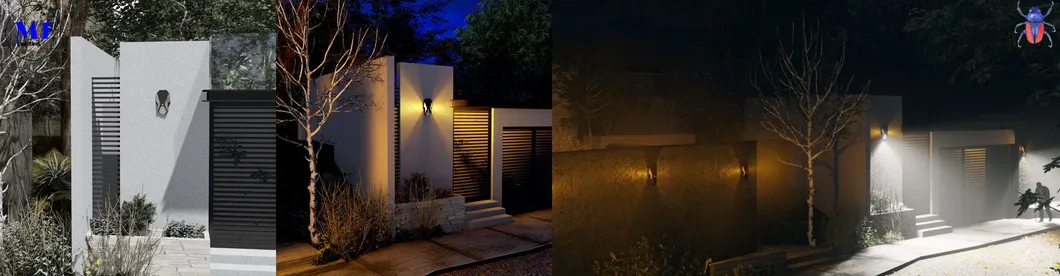

Solar Wall Light Overview

Creative Design

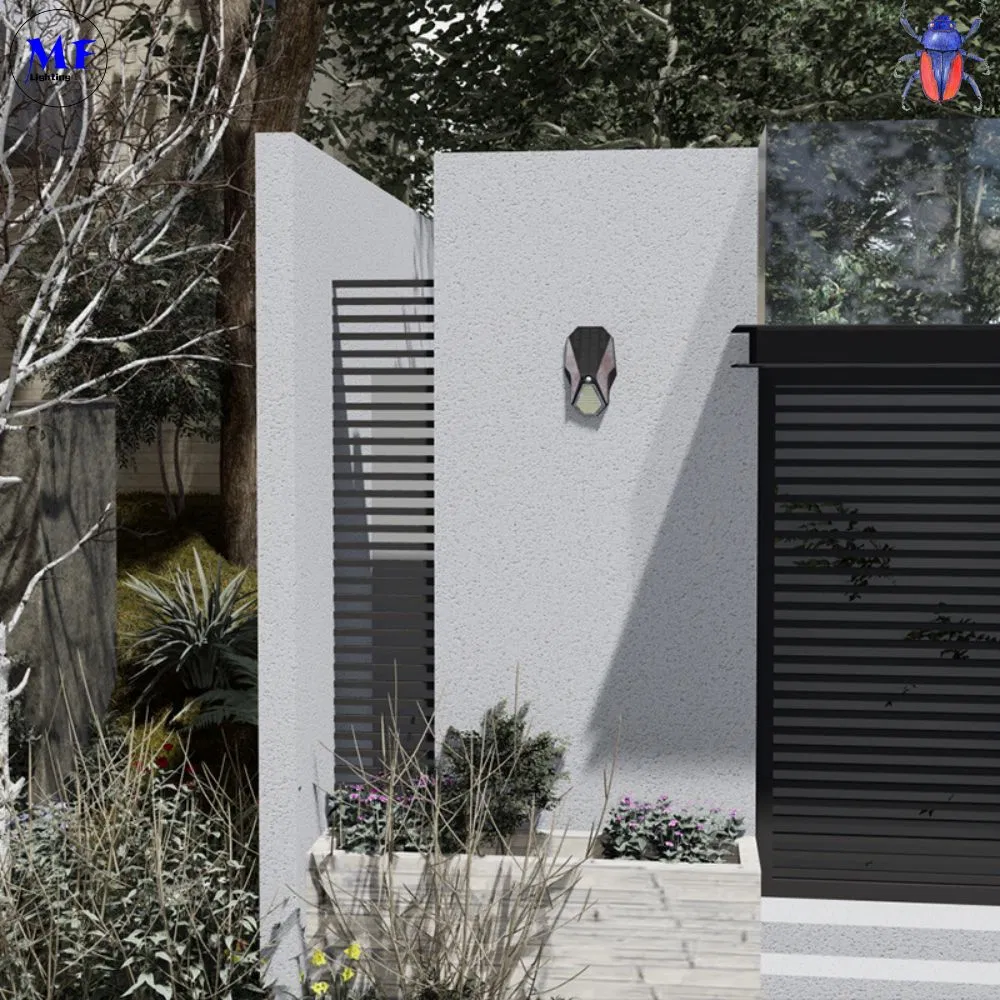

Creative Design Appearance

Lighting Modes

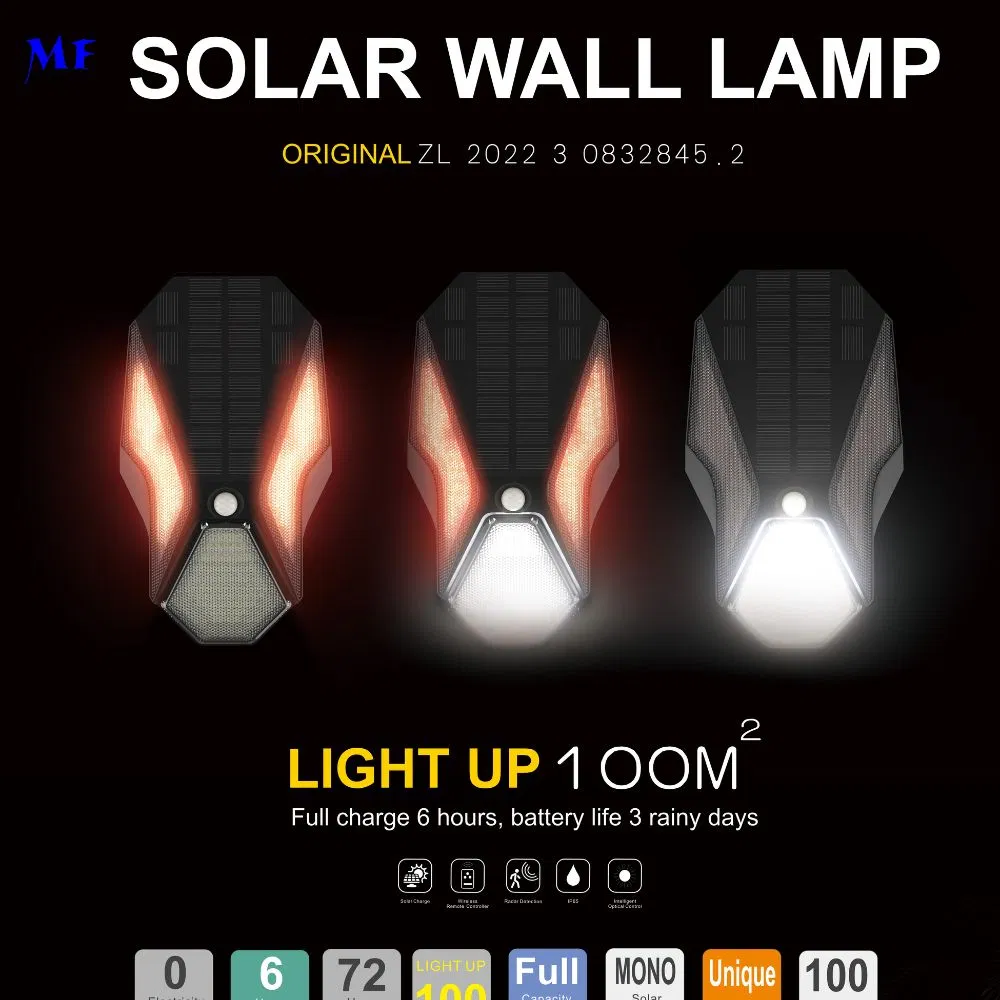

Three Lighting Modes

Technical Specifications

Parameter Details
Item CodeMF-B001
Lamp Body Size200 * 115 * 40mm
Lamp Beads2835 (64 + 23*2)
Luminous Flux120lm
Main Lamp Power2.0W
Induction Type3-5m Infrared Sensing
Illumination AreaApprox. 100 Square Meters

Detailed Photos & Installation

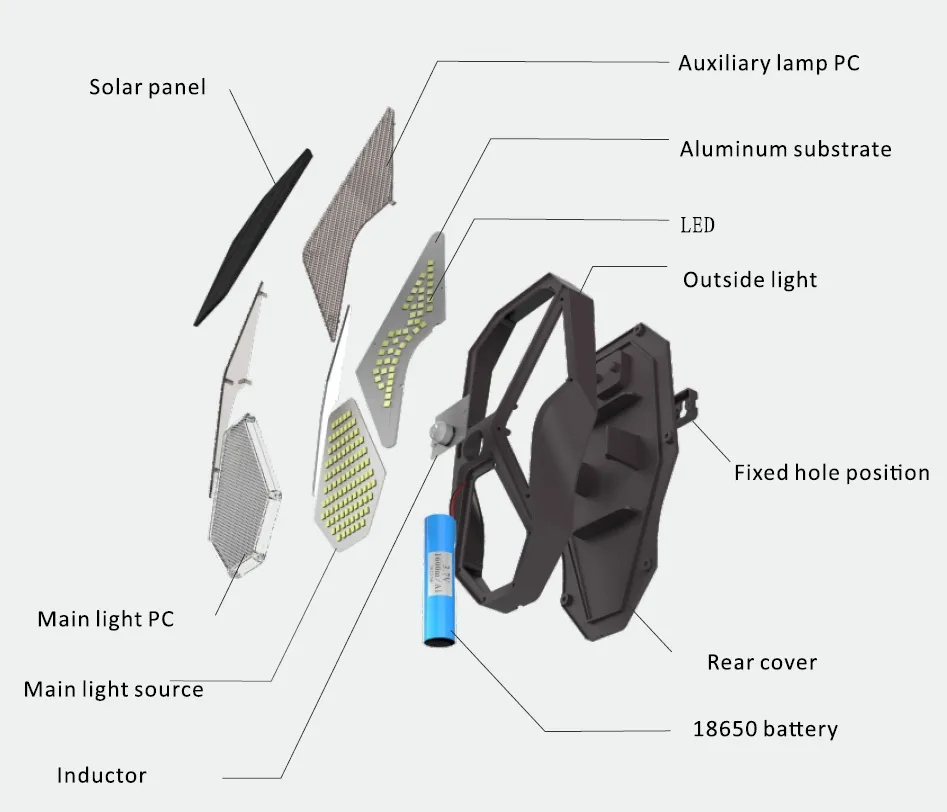

Detailed Product View

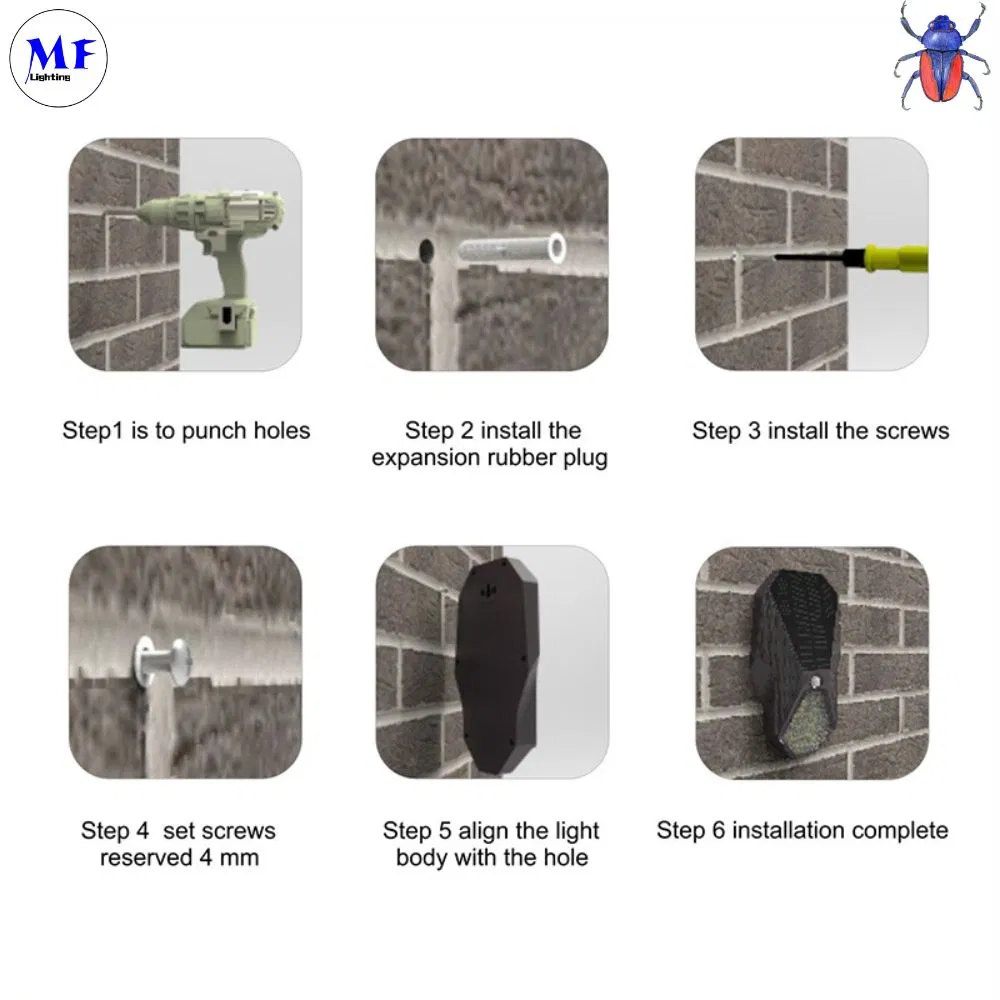

Installation Step 1

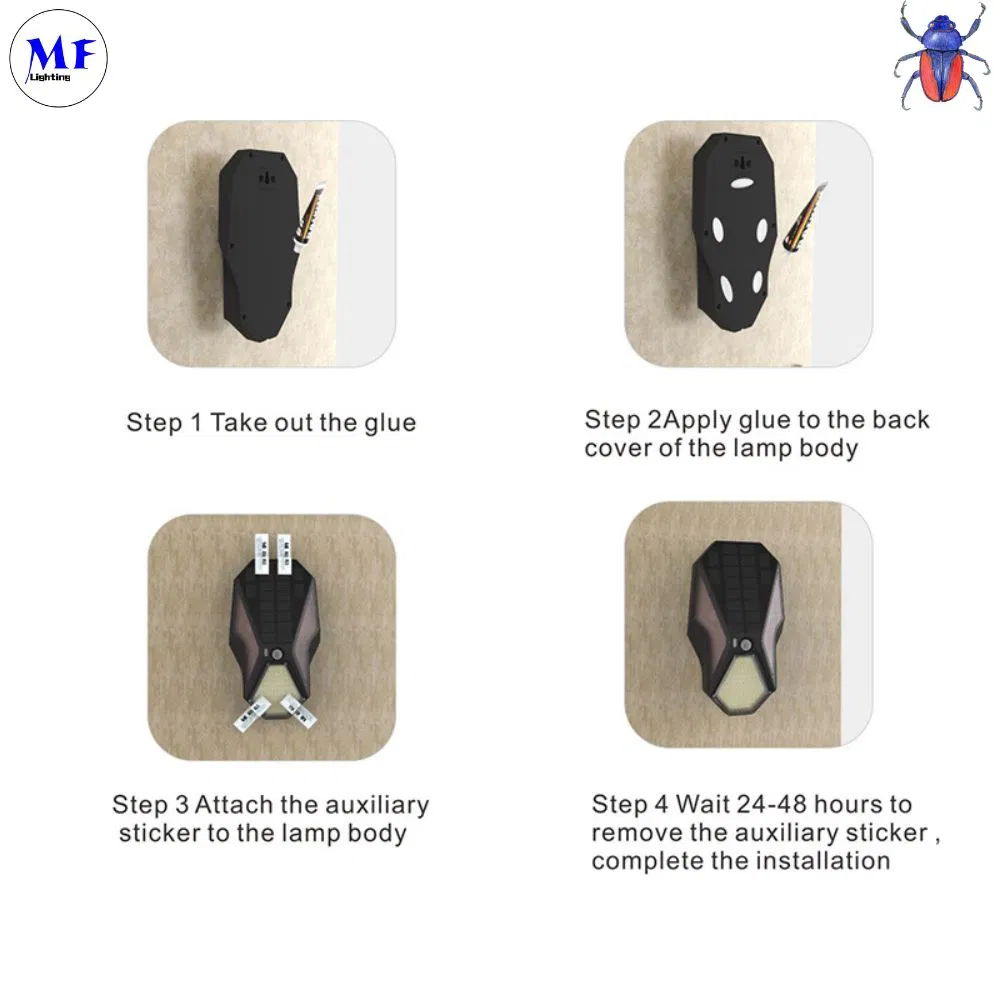

Installation Step 2

Operation & Control

Default Mode: Click ON to start. Main light 100%, secondary 50%. After 30s without induction, main light turns off while secondary remains at 50% for 30s before dropping to 20%.

Power Saving: Double-click ON. Main light 100%, secondary 20%. After 30s no induction, main light off, secondary stays at 20%. Full shutdown after further inactivity.

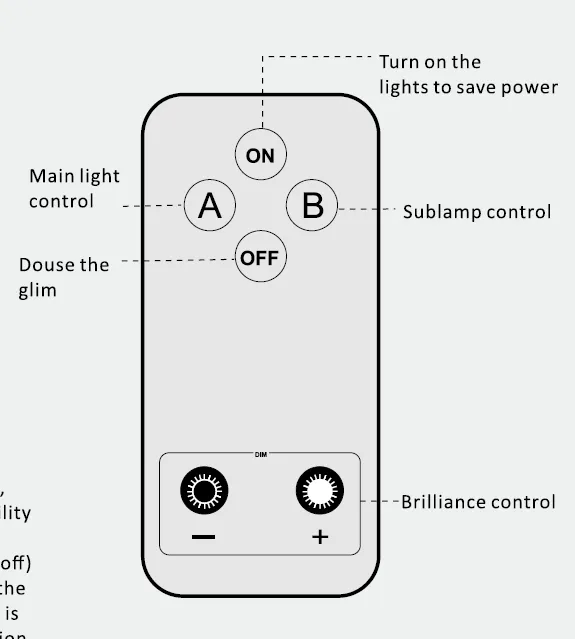

Remote Control Guide

Dimensions & Application

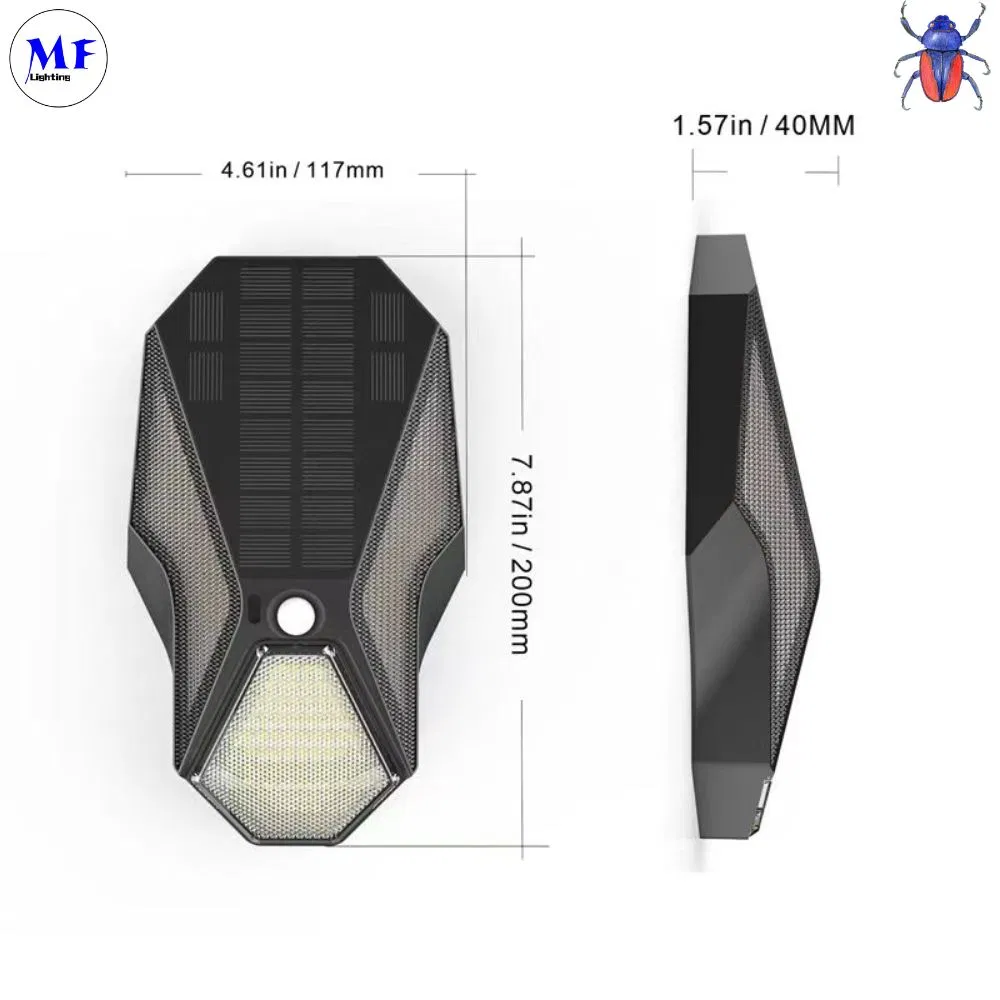

Product Dimensions

This LED Solar Wall Light is a versatile solution for gardens, patios, pathways, and decks. Its motion-sensing technology provides enhanced security for residential and commercial properties.

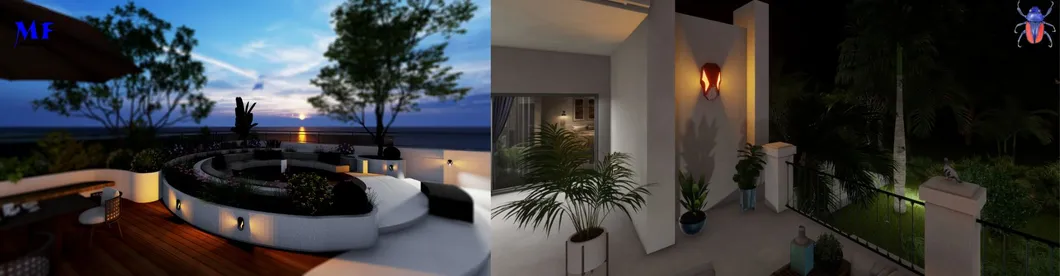

Application 1

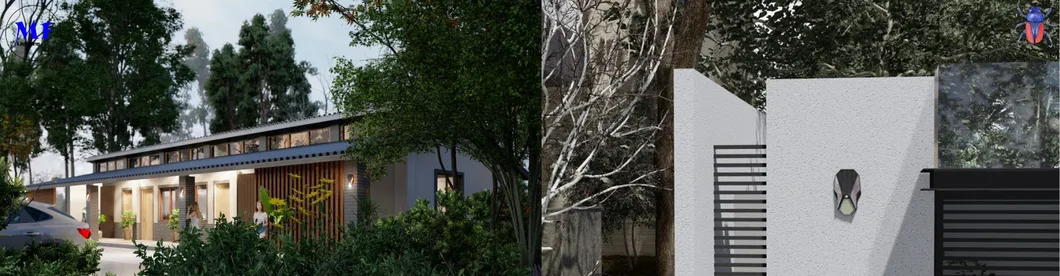

Application 2

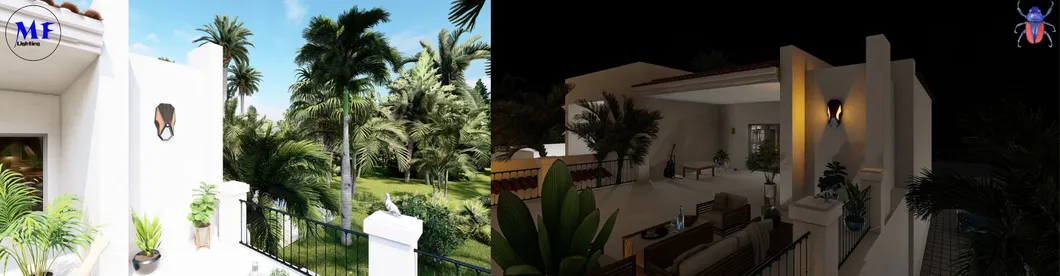

Application 3

Quality Testing

The solar module adopts monocrystalline cells with conversion efficiency over 20%. Each component undergoes strict inspection and performance testing for outdoor durability.

Testing 1
Testing 2
Testing 3
Performance Testing Data
Frequently Asked Questions
How long does the battery last on a full charge?
The light is equipped with an 1800mAh lithium battery that can provide up to 72 hours of illumination time.
What is the sensing range of the motion sensor?
The built-in PIR sensor detects motion within a range of 3 to 5 meters.
Is this light truly waterproof for outdoor use?
Yes, it features an IP65/IP44 weather-resistant rating, making it suitable for rain, snow, and various outdoor conditions.
How long does it take to charge in sunlight?
Under standard sunlight conditions, the high-efficiency monocrystalline solar panel takes approximately 6 hours to fully charge.
Can the lighting modes be adjusted?
Yes, you can switch between Default Mode and Power Saving Mode using the remote control or the main button on the device.
What materials are used for the lamp construction?
The light is constructed from high-quality ABS, Aluminum, and Polycarbonate (PC) for durability and heat dissipation.
