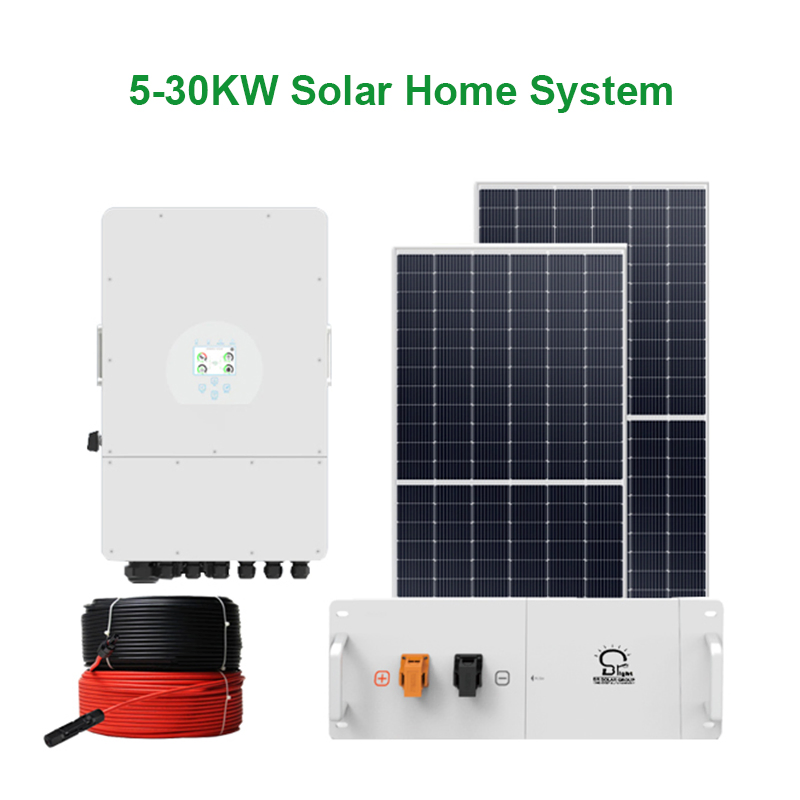

Available Power Range: 5kw, 8kw, 10kw, 15kw, 20kw, 30kw, 40kw

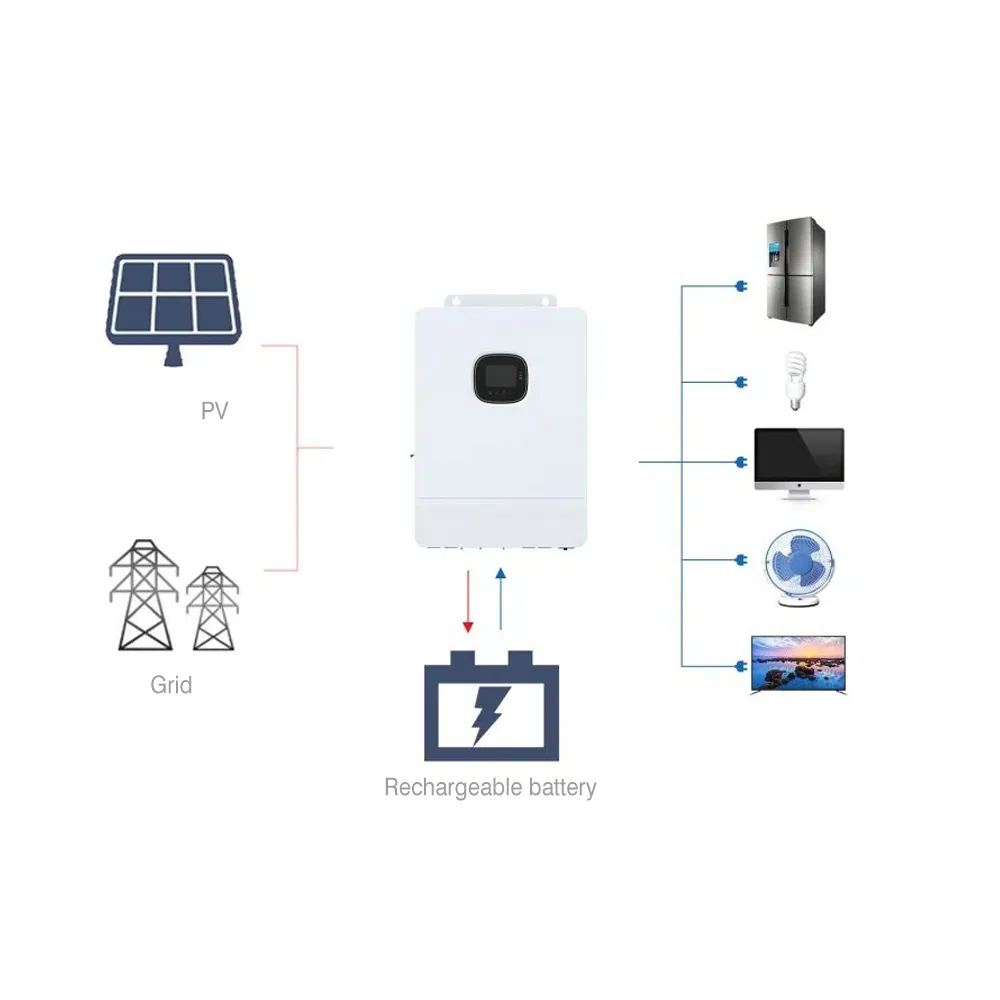

Our off-grid solar home lighting systems provide reliable energy solutions for portable panel power energy lighting. Equipped with high-performance lithium or gel batteries, these systems are designed for durability and efficiency.
Perfect for motor homes, RVs, and marine vessels.
Ideal for plateaus, islands, and areas without grid electricity.
Powering photovoltaic water pumps for deep wells.
Unattended microwave relay stations and GPS power supply.

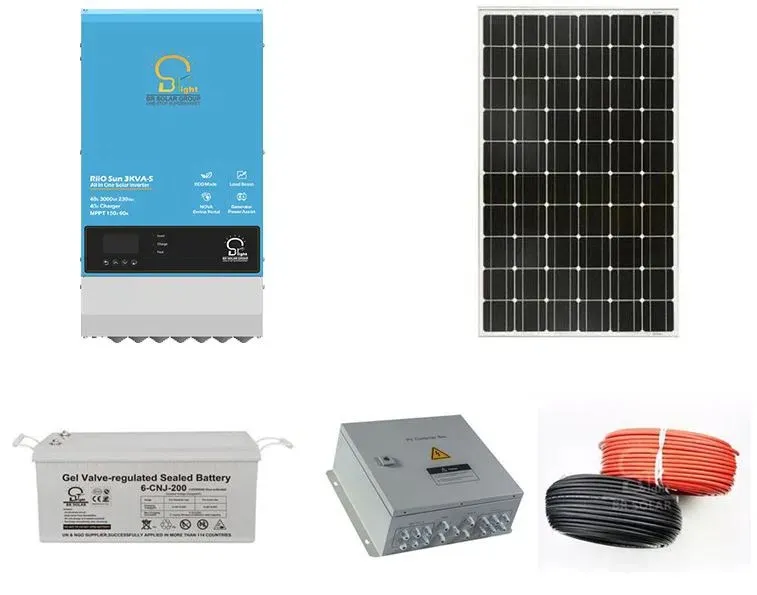

| No. | Component Name | Specification | Qty | Remarks |
|---|---|---|---|---|

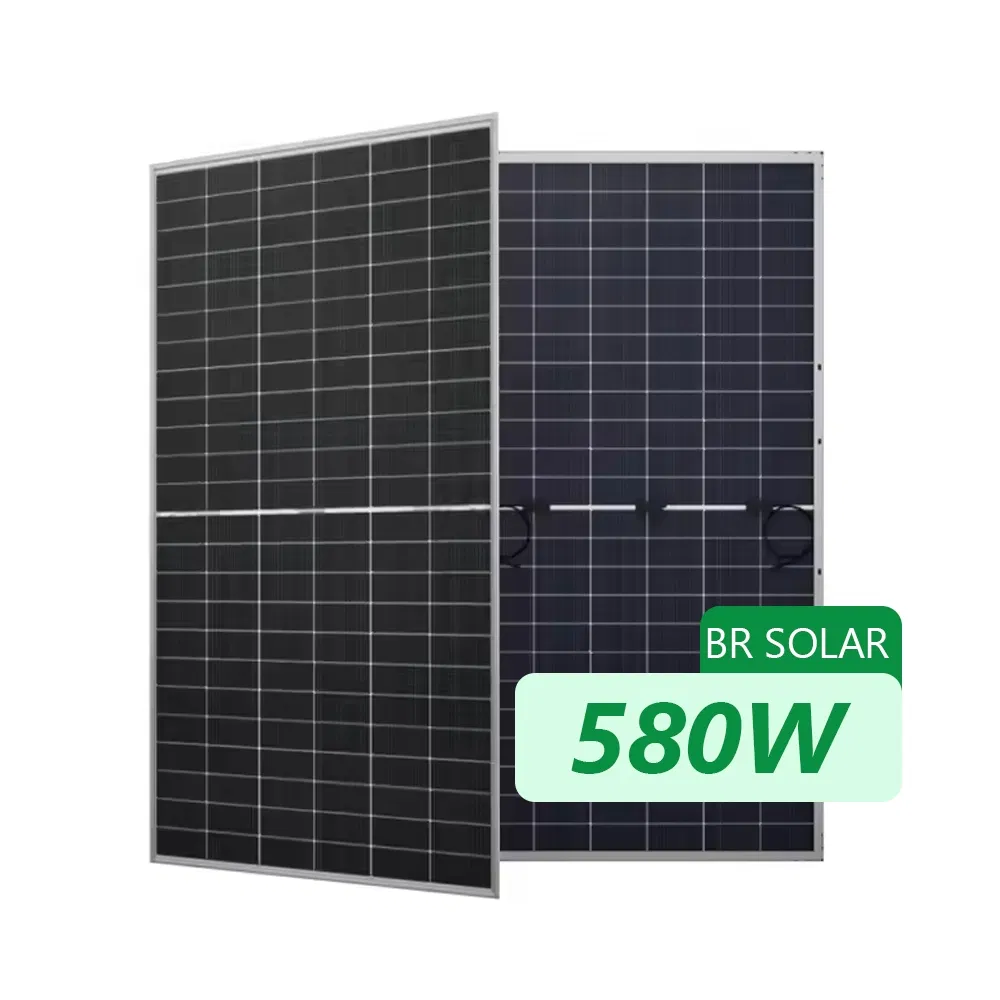

| 1 | Solar Panel | Mono 300W 36V | 8 Pcs | 2 strings x 4 parallels |

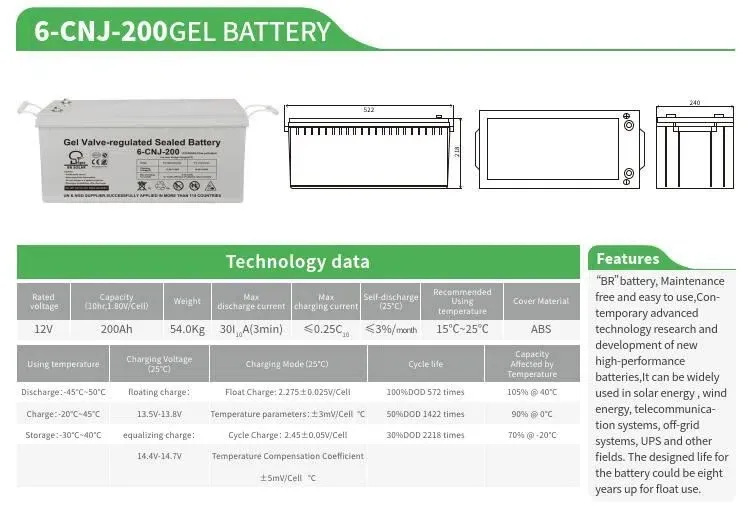

| 2 | Solar Battery | Gel 12V 200AH | 4 Pcs | 4pcs in series |

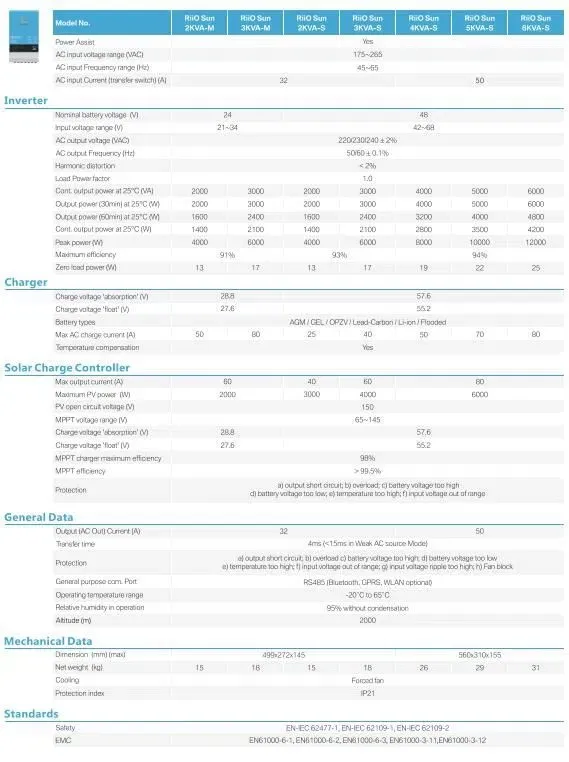

| 3 | Inverter | 3KW DC48V-60A | 1 Set | Pure sine wave, Support grid/Diesel |

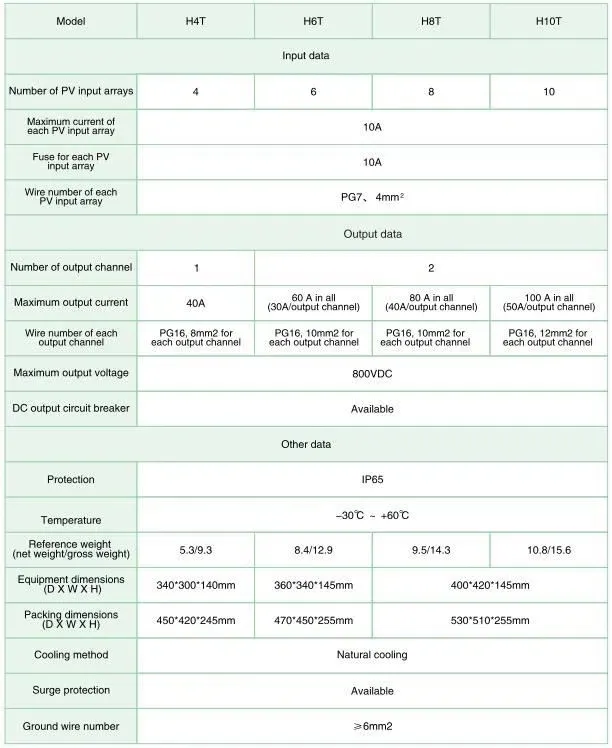

| 4 | PV Combiner Box | 4-1 Input/Output | 1 Pc | 4 inputs, 1 output |
| 5 | Cables | 4mm² / 10mm² / 25mm² | Various | PV & Battery connection cables |

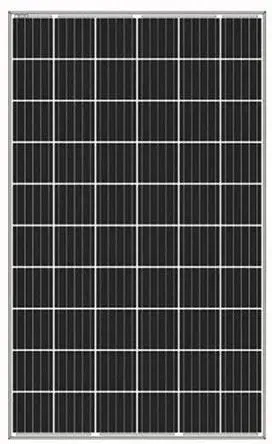

| Max Power | 300 Watts |  |
| Open Circuit Voltage (Voc) | 42.60V | |
| Max Power Voltage (Vmp) | 35.80V | |
| Cell Efficiency | ≥17% | |
| Dimensions | 1950mm*992mm*45mm | |
| Weight | 20.90kg |

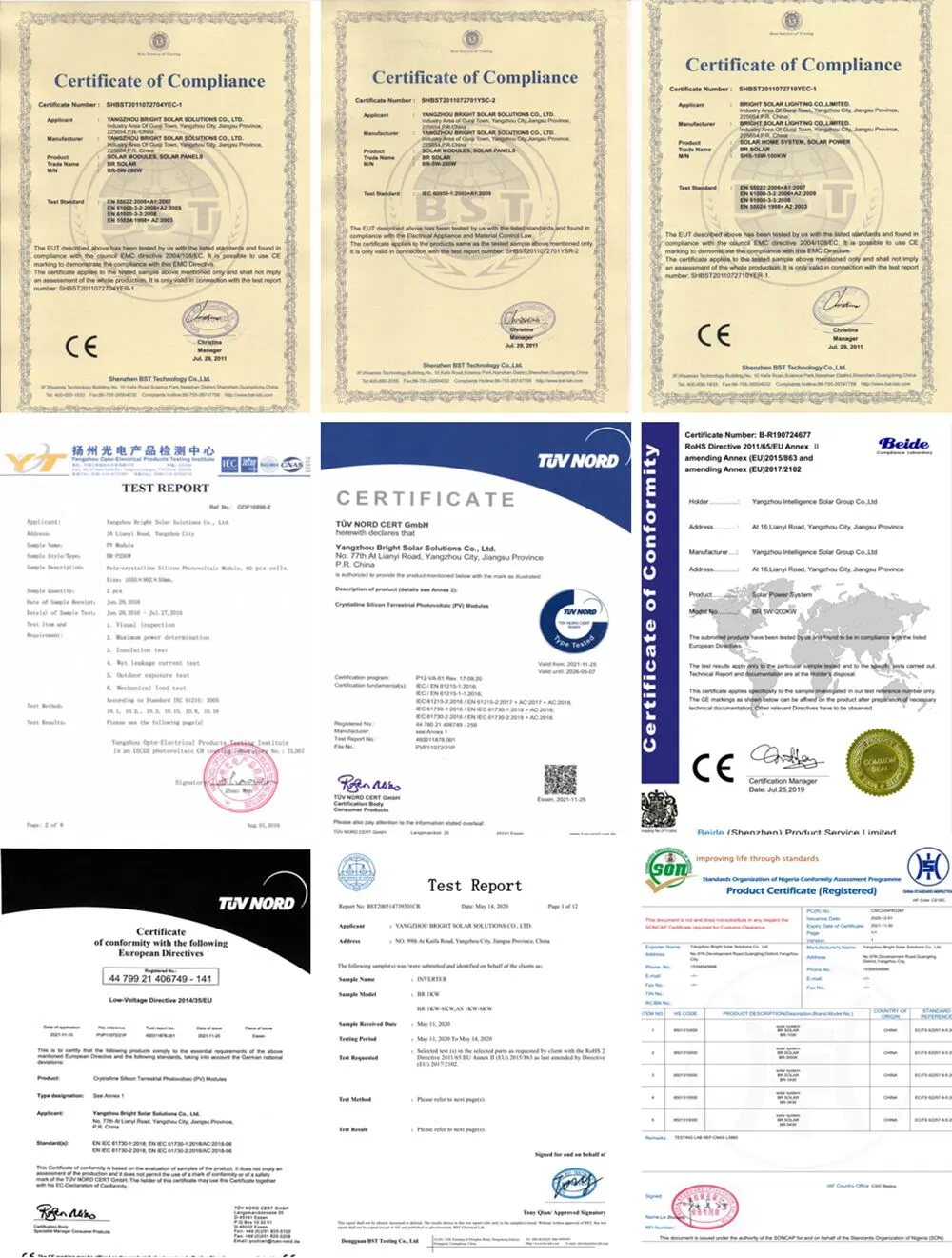

Our products are manufactured under strict quality control systems and have passed various international standards including CE, RoHS, IEC, and TUV.
