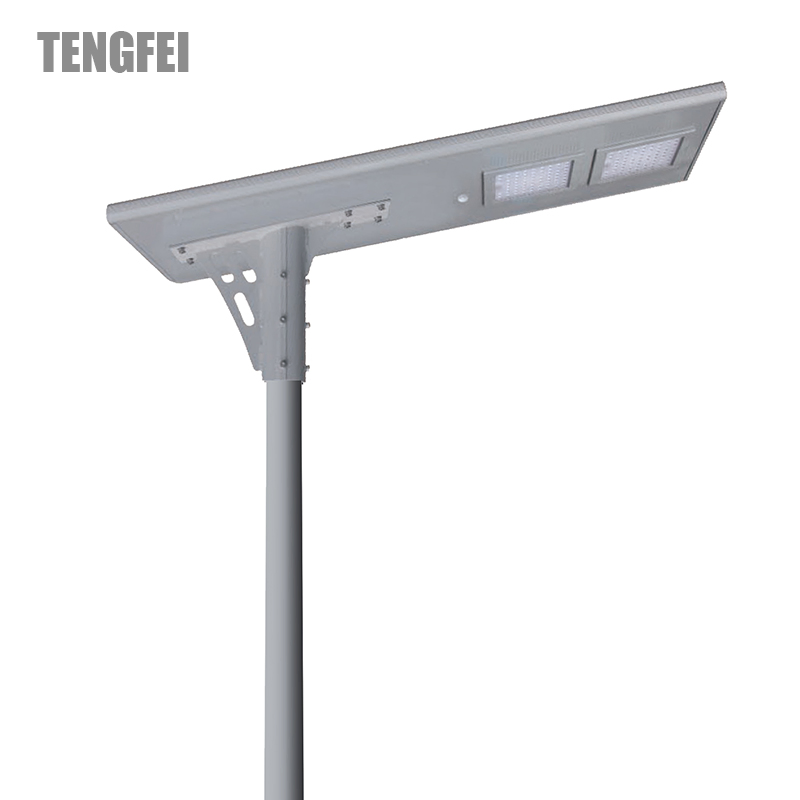

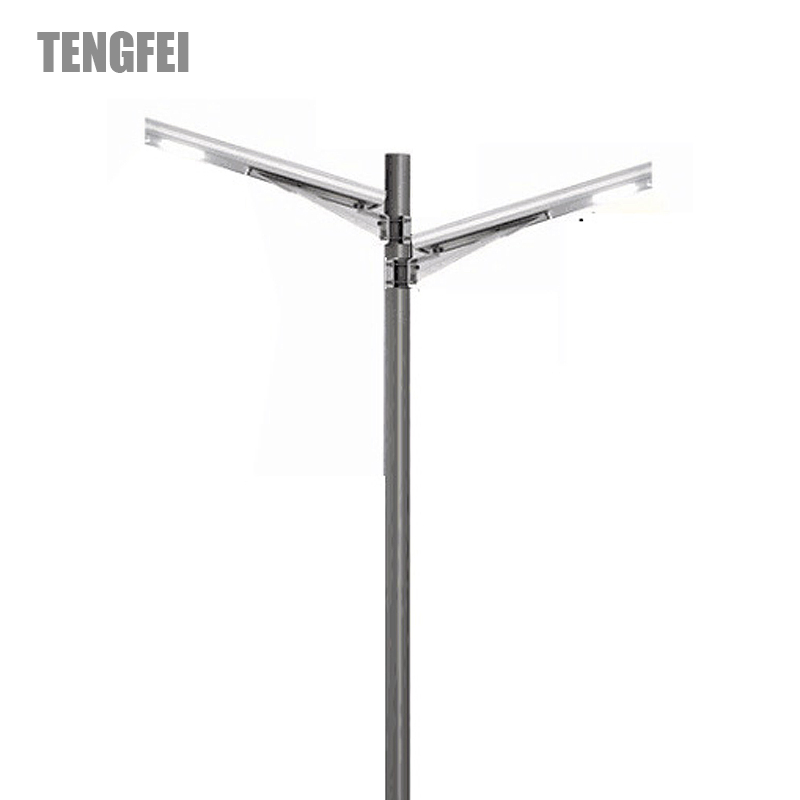

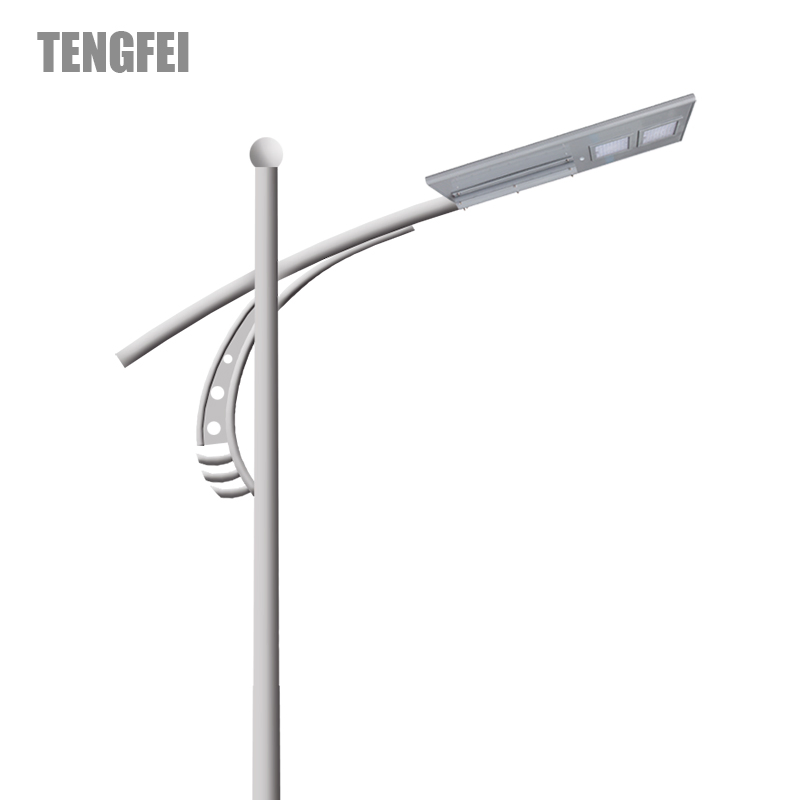

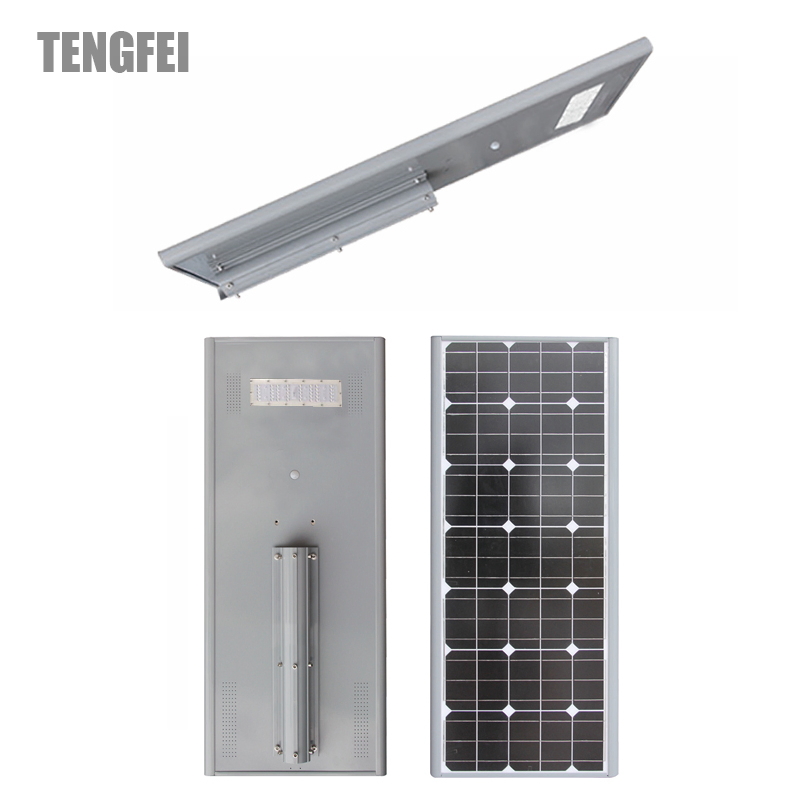

Customized Outdoor Solar Powered Integrated All in One Post Garden Street Light

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Overview & Basic Info

Model
All in one C 09
Light Source

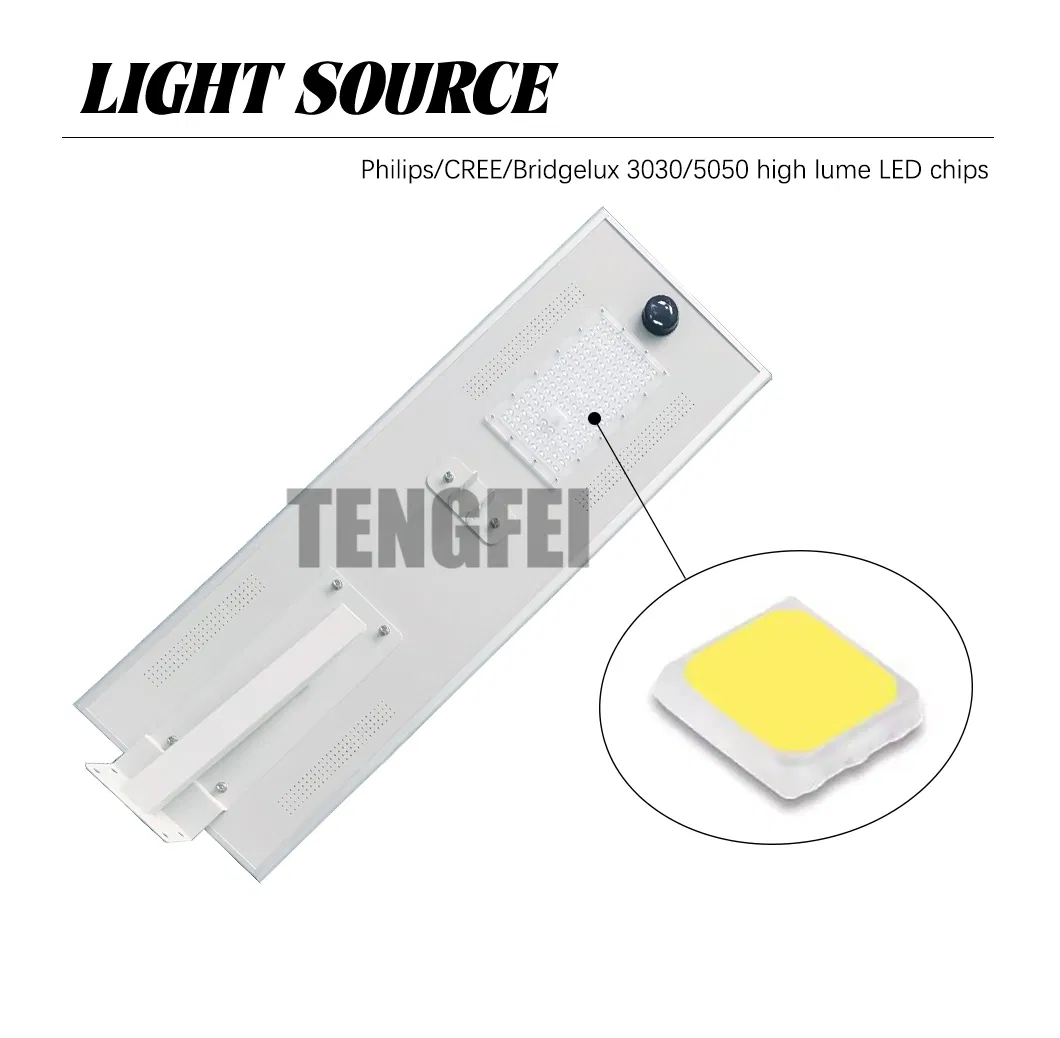

LED Lamp / Energy-Saving
Body Material
Aluminum Alloy
Light Type
Solar Powered
Color Temp
Cool/Warm/Pure White
Power Range
≥30W (Up to 200W)
Battery Type
LiFePO4 Lithium Battery
IP Rating
IP65 Waterproof
Lifespan
8-10 Years / 80,000 hrs
Sensor Type

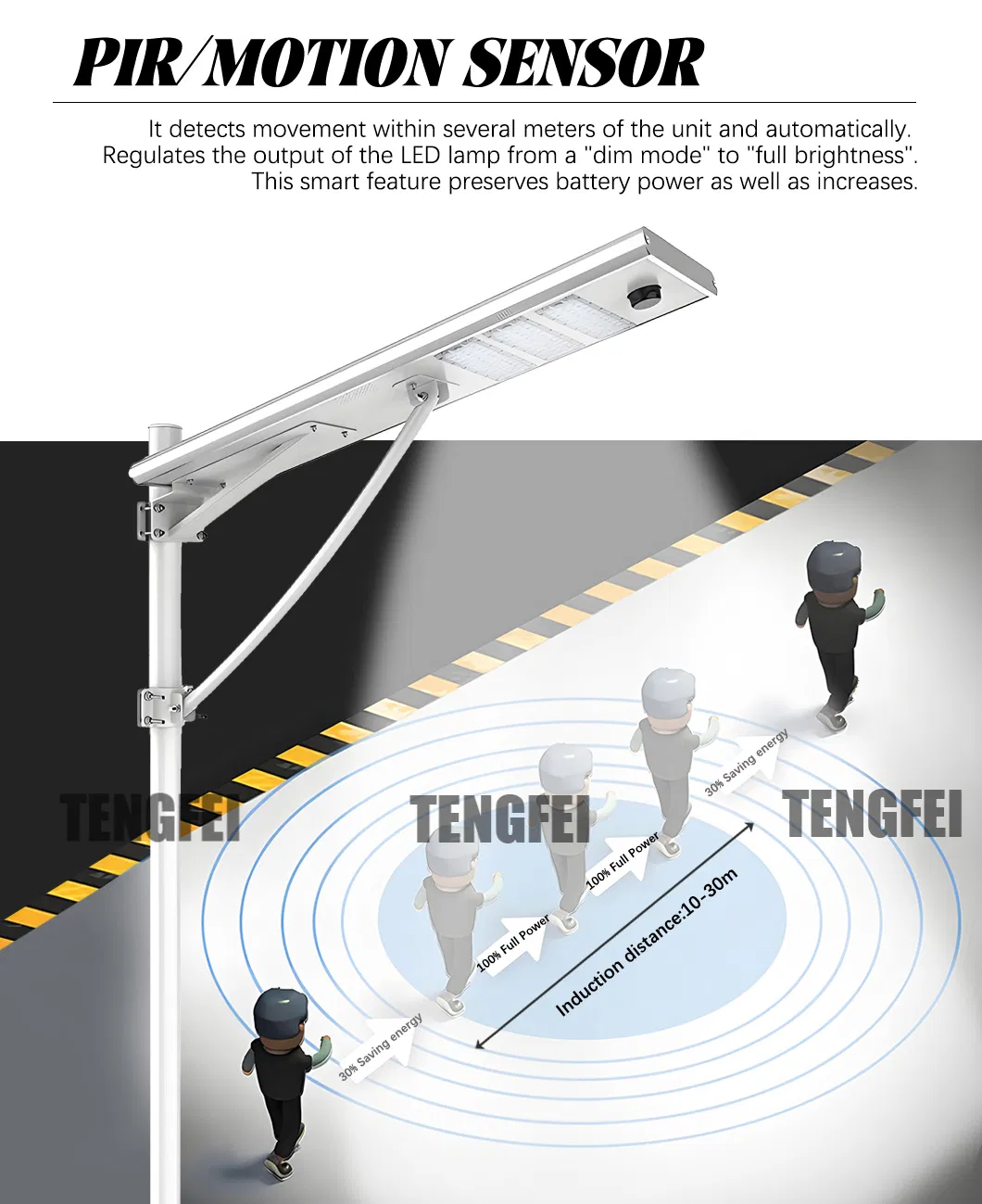

Motion + Light + APP Remote
Charging Time
4-6 Hours
Working Time
12 hrs/Night, 2-3 Rainy Days

📦 Packaging & Delivery

Package Size
600.00cm * 260.00cm * 260.00cm
Gross Weight
45.000kg
Transport Package
Bubble Wrap + Reinforced Carton

⚙️ Technical Specifications (20W-60W)

Model NO. TF-AIO-C20 TF-AIO-C30 TF-AIO-C40 TF-AIO-C50 TF-AIO-C60
Lamp Power20W30W40W50W60W
Solar Panel50W60W70W80W90W
Lithium Battery154WH230WH307WH384WH460WH
Luminous Flux3200lm4800lm6400lm7500lm9600lm
Mounting Height4-6m4-6m5-7m6-8m6-10m
IP RatingIP65

🚀 High Power Specifications (80W-200W)

Model NO. TF-AIO-C80 TF-AIO-C100 TF-AIO-C120 TF-AIO-C150 TF-AIO-C200
Lamp Power80W100W120W150W200W
Solar Panel120W140W180W240W300W
Lithium Battery614WH768WH922WH1280WH1536WH
Luminous Flux12800lm15000lm18000lm22500lm30000lm
Mounting Height8-12m8-12m10-12m10-15m10-15m

🖼️ Product Gallery

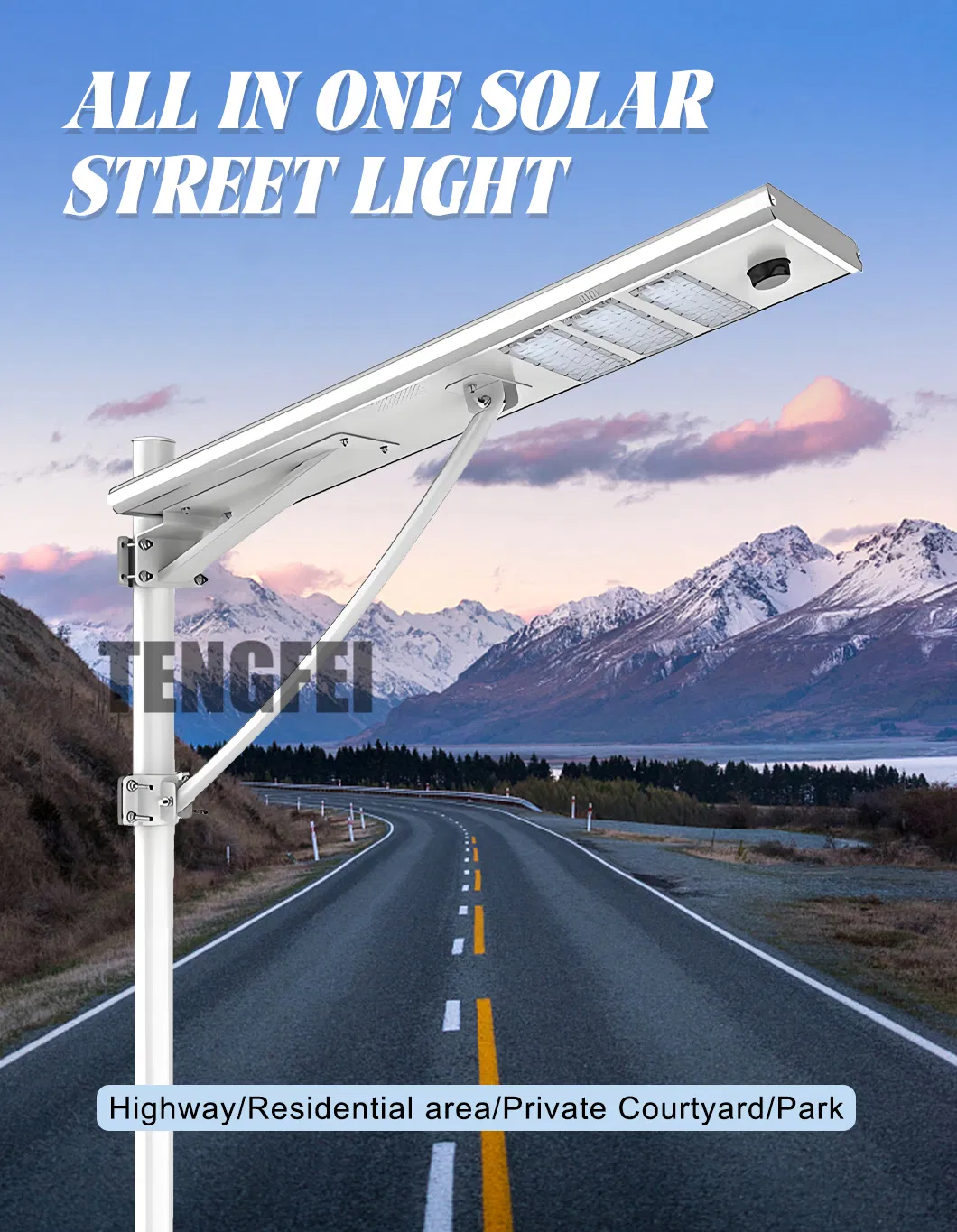

Solar Light Overview Detailed Dimensions

💡 Why Choose Our Solar Solutions

Frequently Asked Questions

How long does the solar light work on rainy days?
The system is designed with high-capacity LiFePO4 batteries that support 2-3 consecutive overcast or rainy days of illumination.
What is the expected lifespan of the product?
The LED light source has a lifespan of approximately 80,000 hours, and the overall system is designed for 8-10 years of service life.

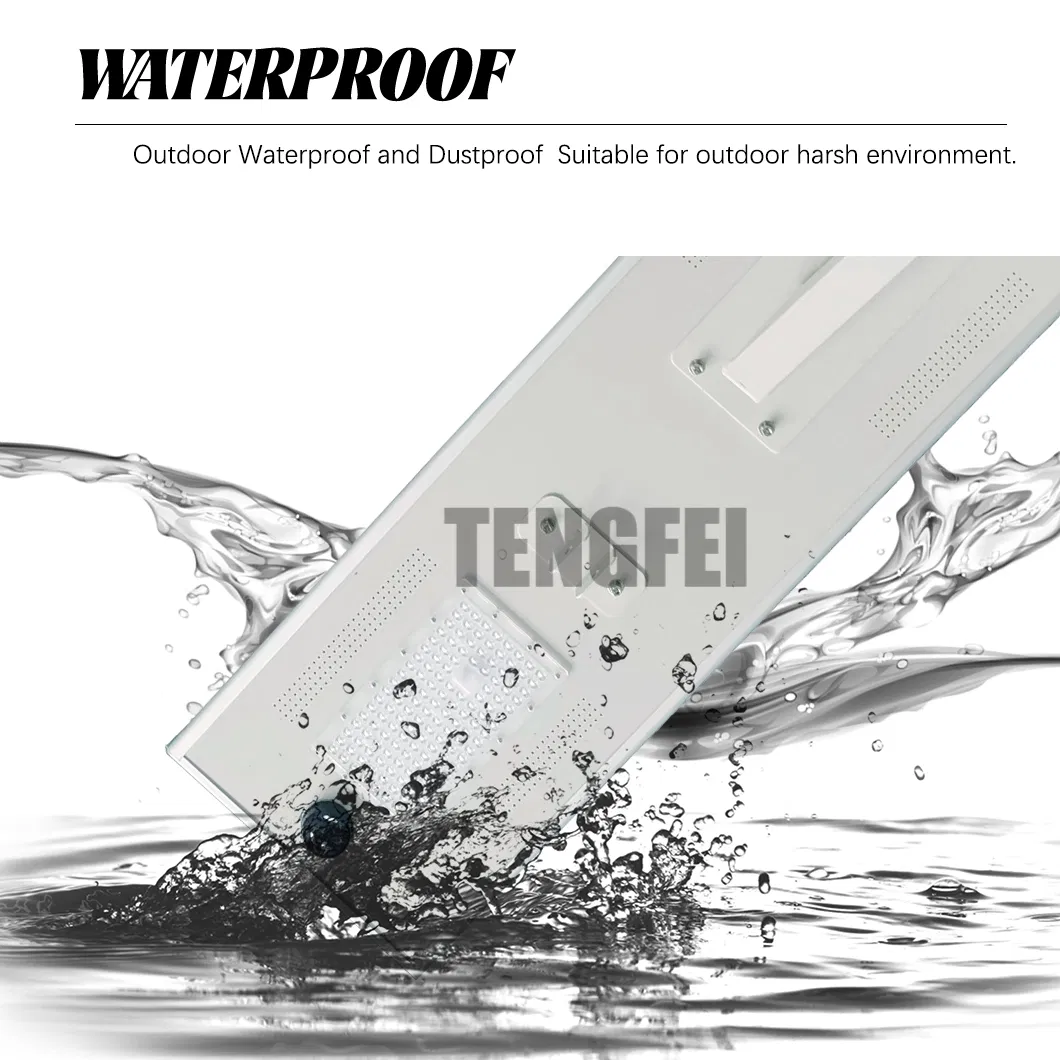

Is the light fully waterproof for outdoor use?
Yes, it has an IP65 rating, meaning it is completely protected against dust and low-pressure water jets from any direction.
How long does it take to fully charge the battery?

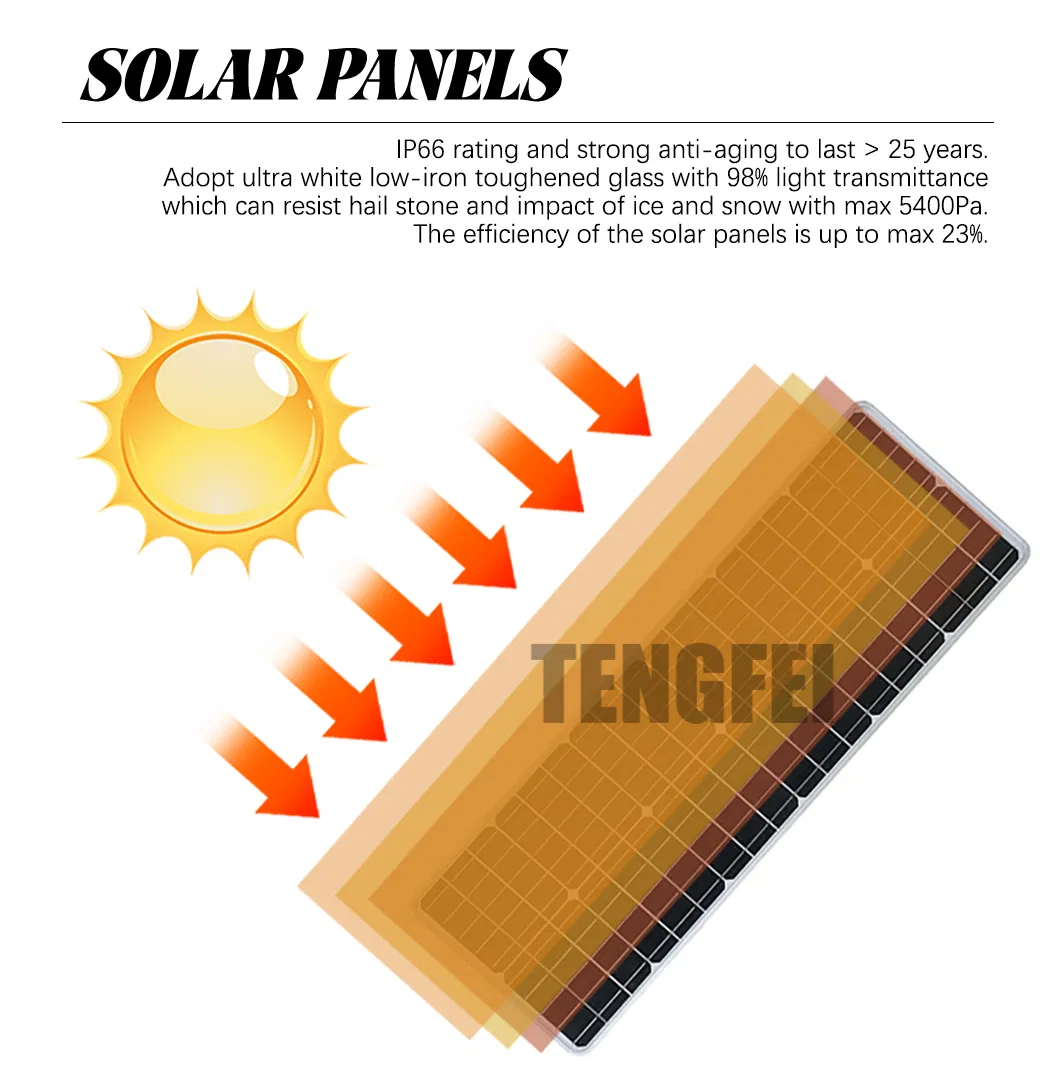

Under standard sunlight conditions, the Mono-type high-efficiency solar panels can fully charge the battery in 4 to 6 hours.
What control modes does the integrated solar light support?
It supports multiple smart modes including Motion Sensor, Light Sensor (Dusk to Dawn), and APP Remote Control for convenient management.
What materials are used for the lamp body?
The body is constructed from high-quality Aluminum Alloy and die-cast aluminum with electroplating technics for superior heat dissipation and corrosion resistance.
