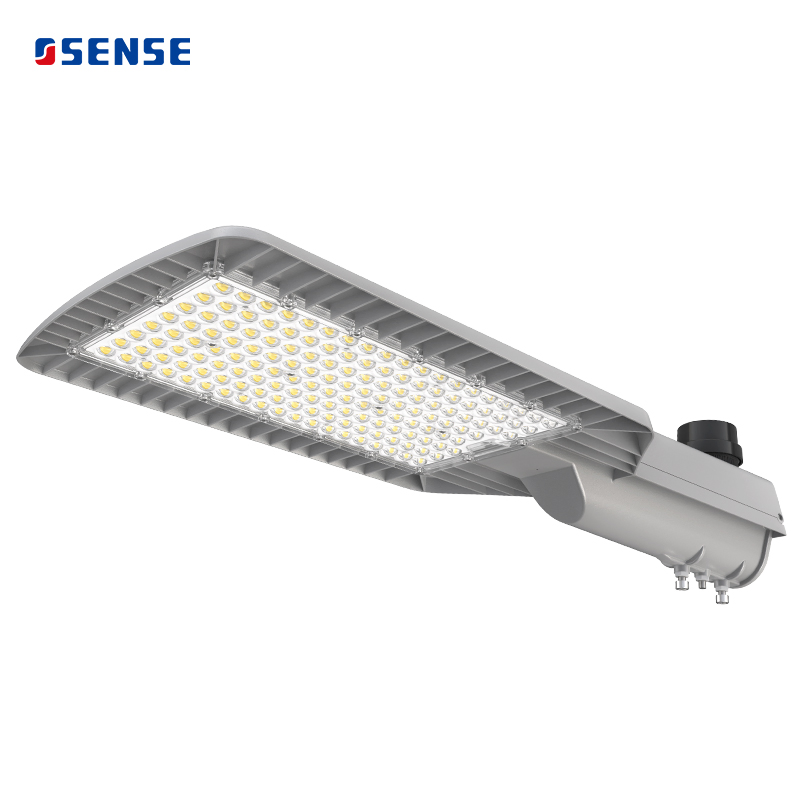

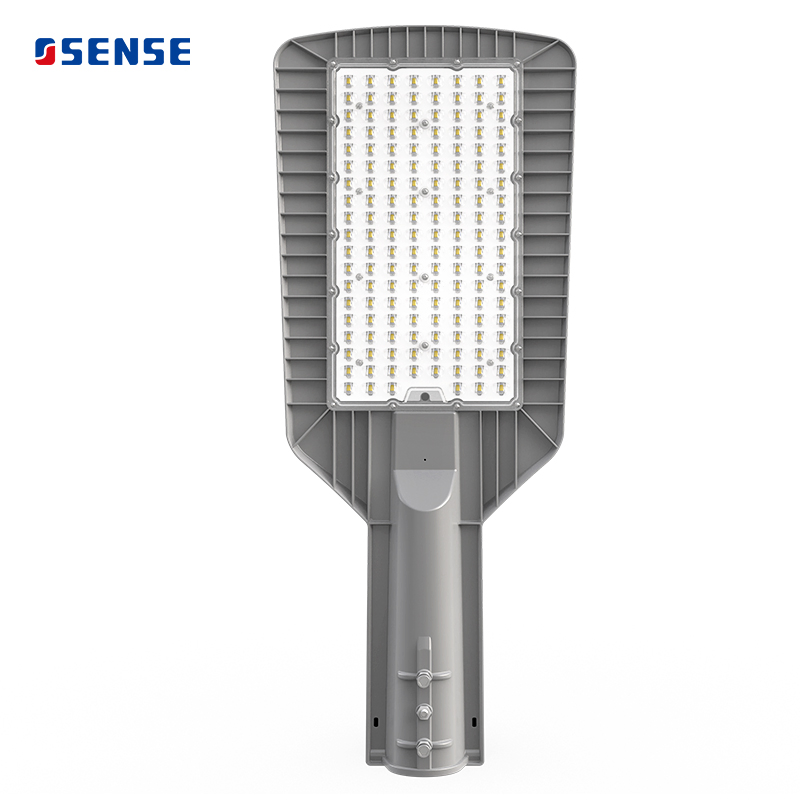

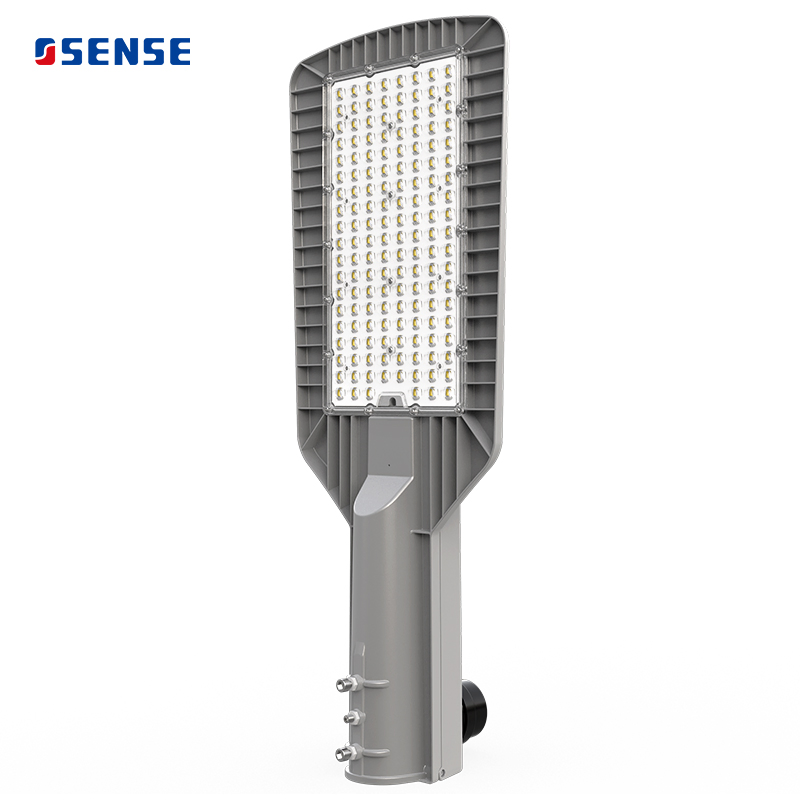

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

1 / 5

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SWL-BY200W

Material

Aluminum (ADC 12 die-casting)

Power

60W

IP Rating

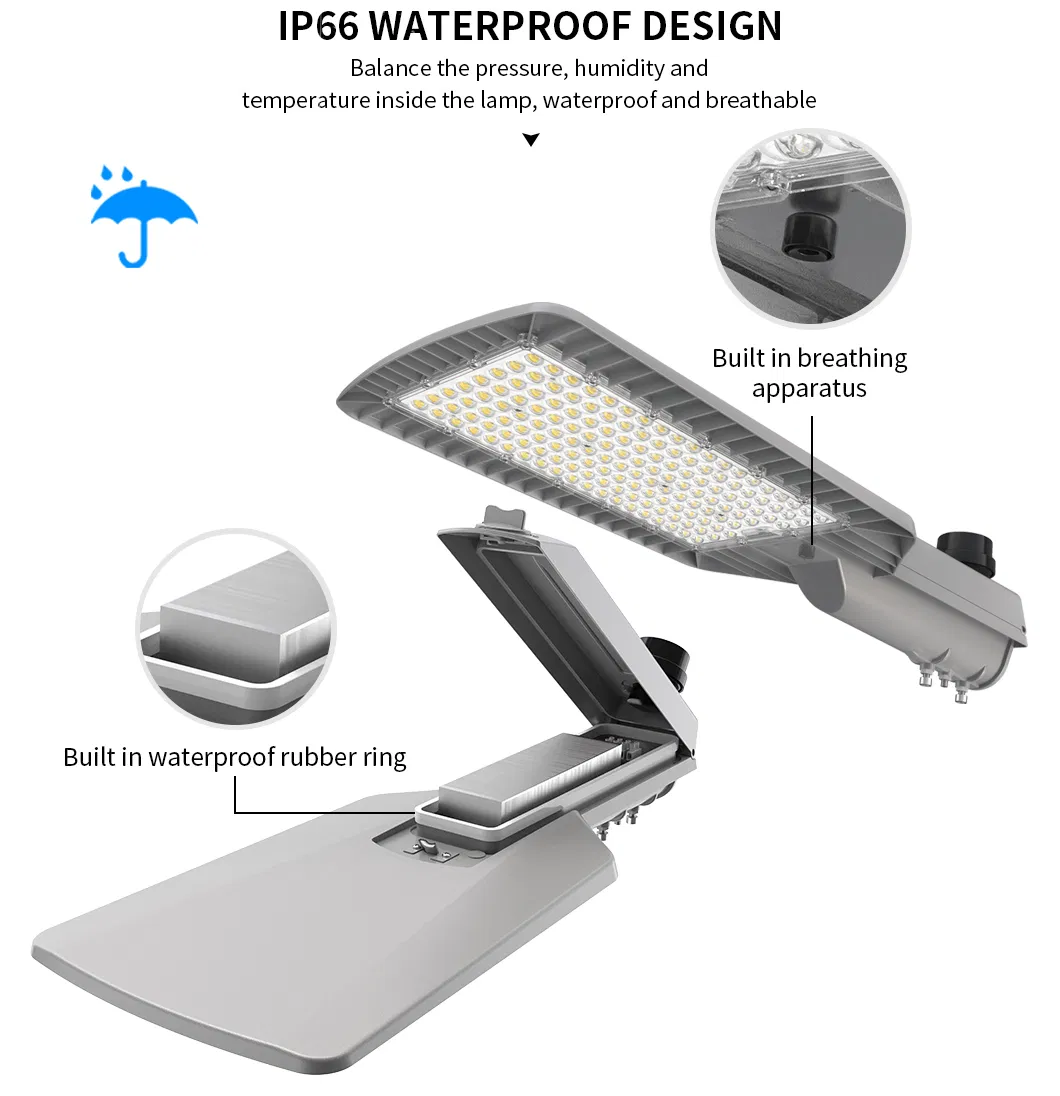

IP66

Input Voltage

100-277V

LED Chips

CREE/OS RAM/Nichia/Lumileds/Bridgelux

Driver Brand

Moso/Sosen/Meanwell/Inventronics

IK Rating

CRI

>70 / >80

Surge Protection

10kv/20kv

Control System

Dali : 0-10V/1-10V

Lifetime

Tq =45° L70>50000h

Key Features

✓

Integrated Design: Patented private mold, integrated Die-casting for superior durability.

✓

Corrosion Resistance: High-efficiency coating passes 500 hours salt spray test.

✓

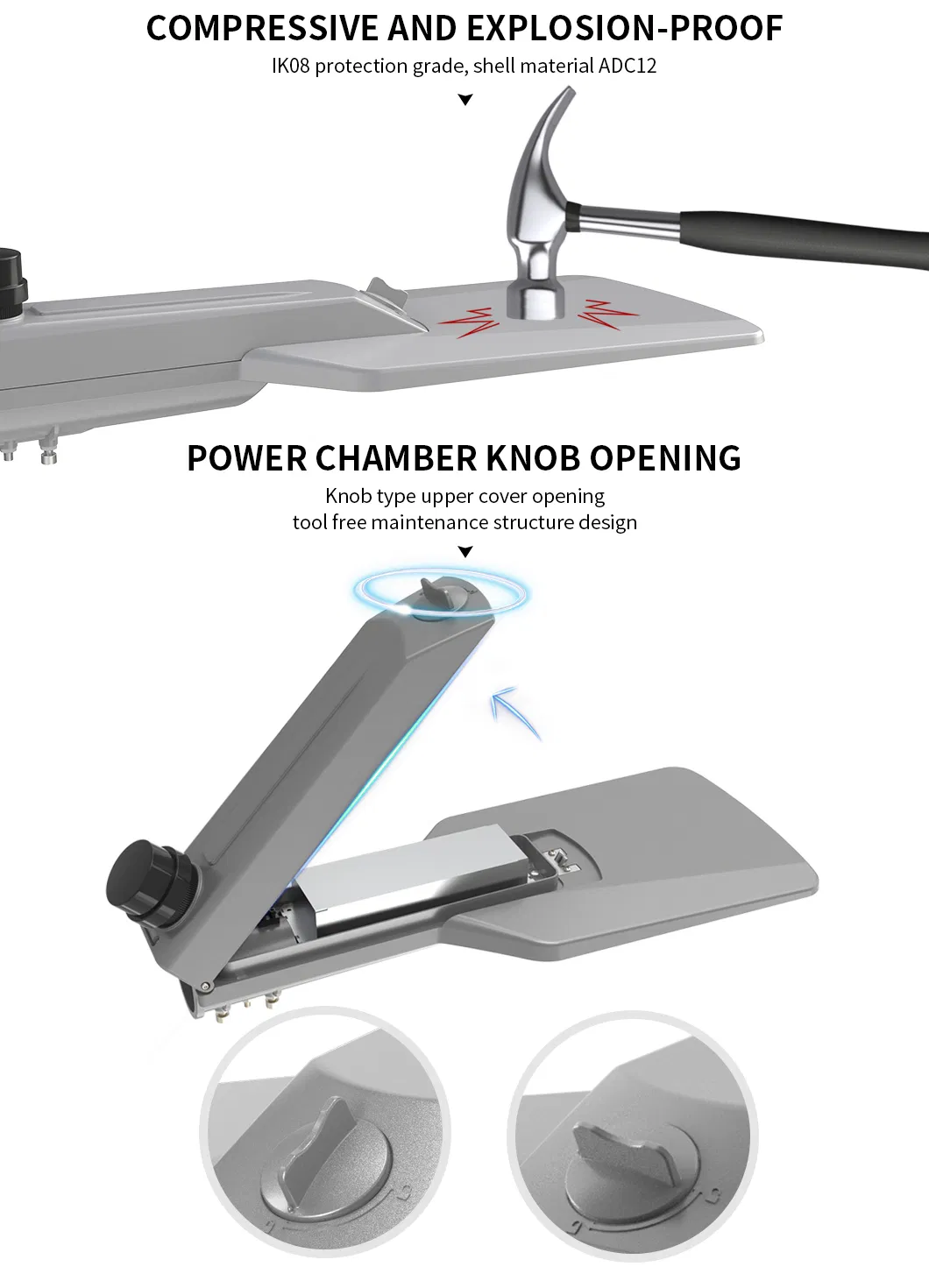

Easy Maintenance: Tool-free open method for the power cavity; safe and fast turn-off protector.

✓

High Efficiency: Up to 170lm/w optional, providing a fast return on investment.

✓

Smart Control: Equipped with PWM, DALI, and 0-10V/1-10V dimming interfaces.

Technical Parameters

GENERAL INFORMATION		ELECTRICAL INFORMATION

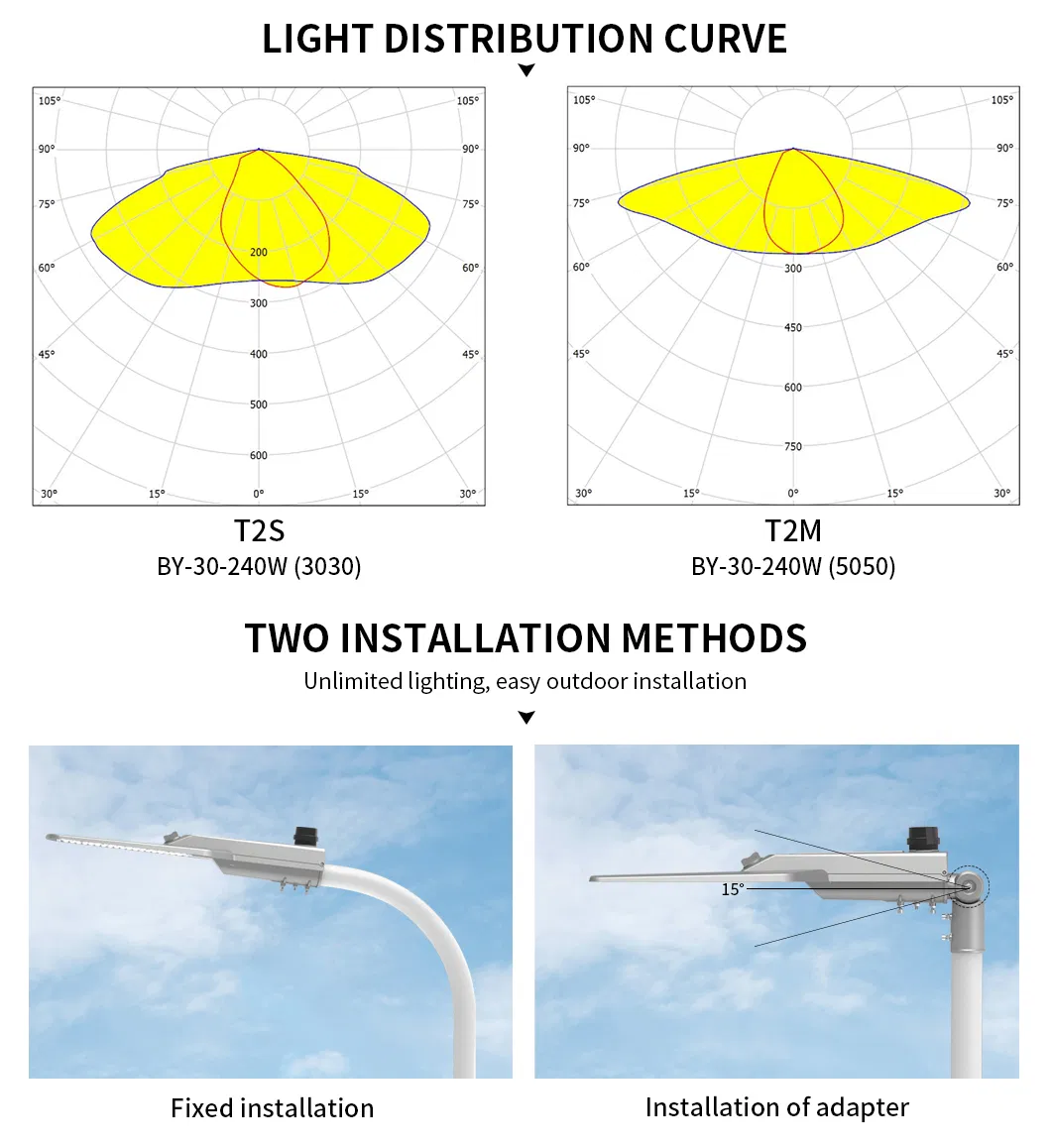

Mounting Module	Post top or side entry (42-60Φ / 76-80Φ)	Electrical Class	Class I
Tilt Angles	0, ±5, ±10, ±15	Nominal Voltage	100v-277vac 50/60Hz
Operating Temp	-30ºC to +45ºC	LED Current	SMD 3030 150mA@6V
HOUSING & MATERIALS		OPTICAL INFORMATION
Housing Finish	Powder spraying, corrosion resistance	Color Temperature	3000K / 4000K / 5000K / 5700K
IP Rating	IP66 (IP67/IP68 optional)	Luminous Flux	Up to 150lm/w - 170lm/w

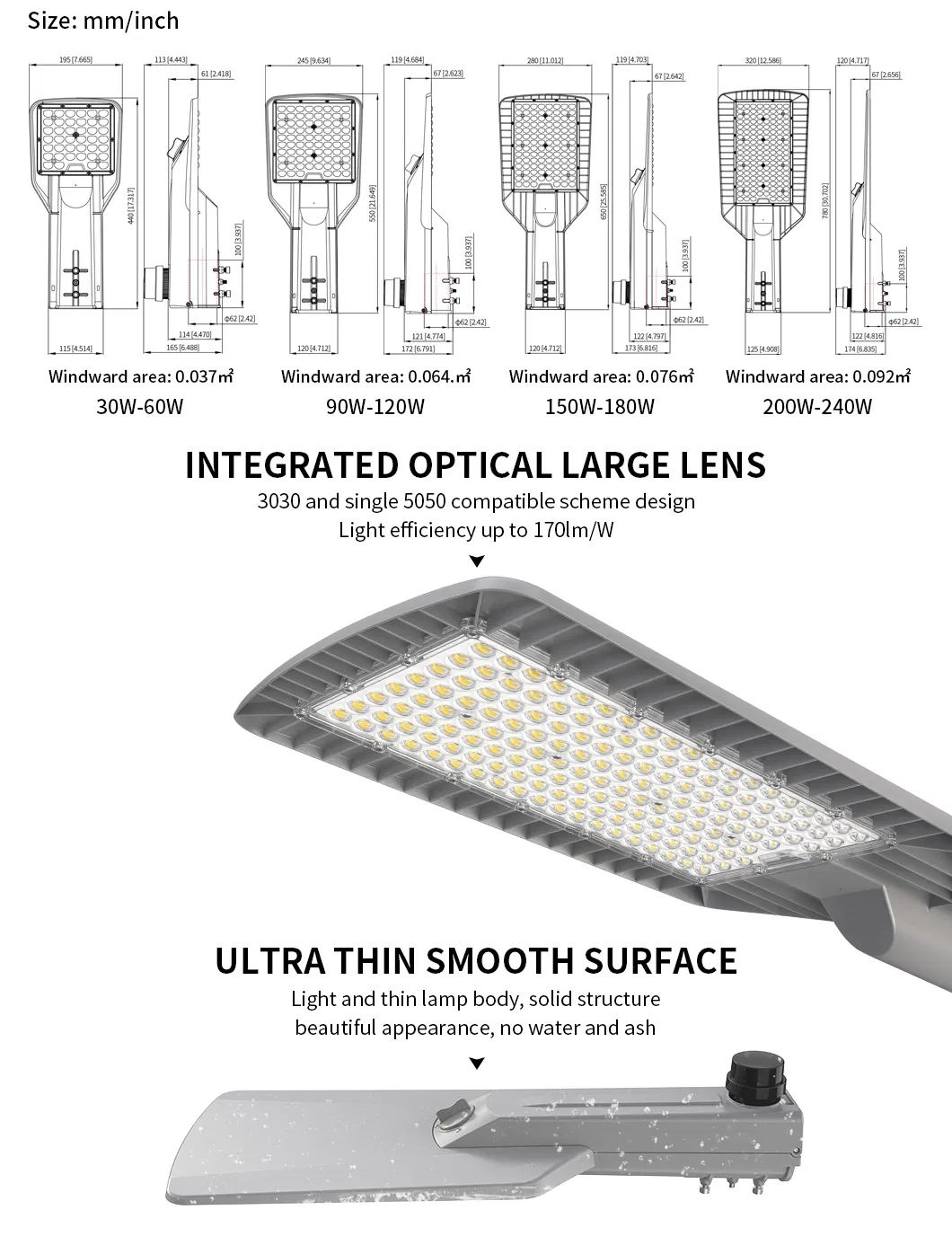

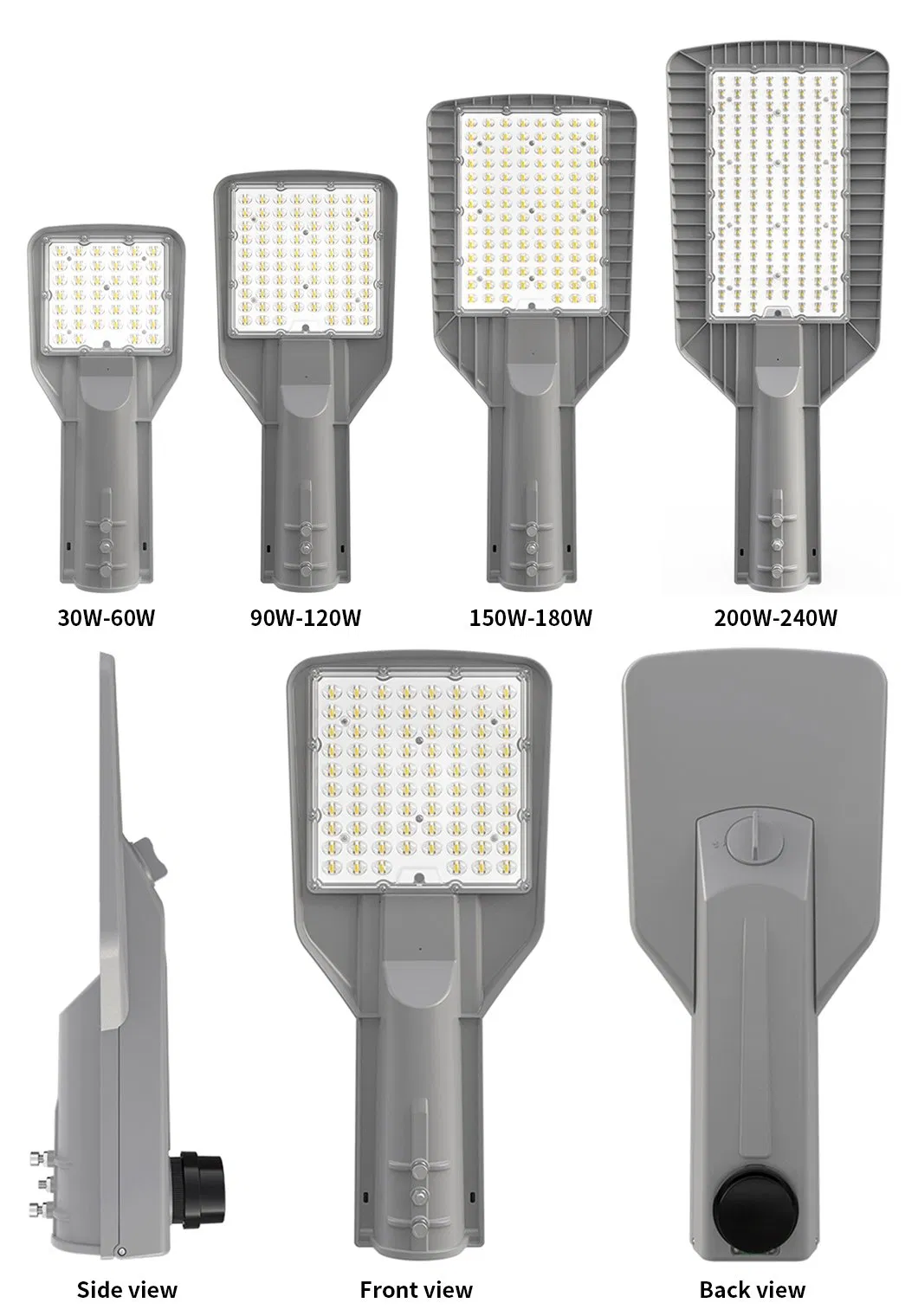

Configuration Scheme

Model No.	Power	LED Chips	Efficiency	Dimensions (mm)	N.W (kg)
SWL-BY30W	30W	CREE 3030	135-150lm/w	440195169	2.9
SWL-BY60W	60W	CREE 3030	135-150lm/w	440195169	2.9
SWL-BY100W	100W	CREE 3030	135-150lm/w	550245172	4.2
SWL-BY150W	150W	CREE 3030	135-150lm/w	650280173	5.3
SWL-BY200W	200W	CREE 3030	135-150lm/w	780320174	6.6
SWL-BY240W	240W	CREE 3030	135-150lm/w	780320174	6.6

Product Details Gallery

Frequently Asked Questions

Are you a professional manufacturer?

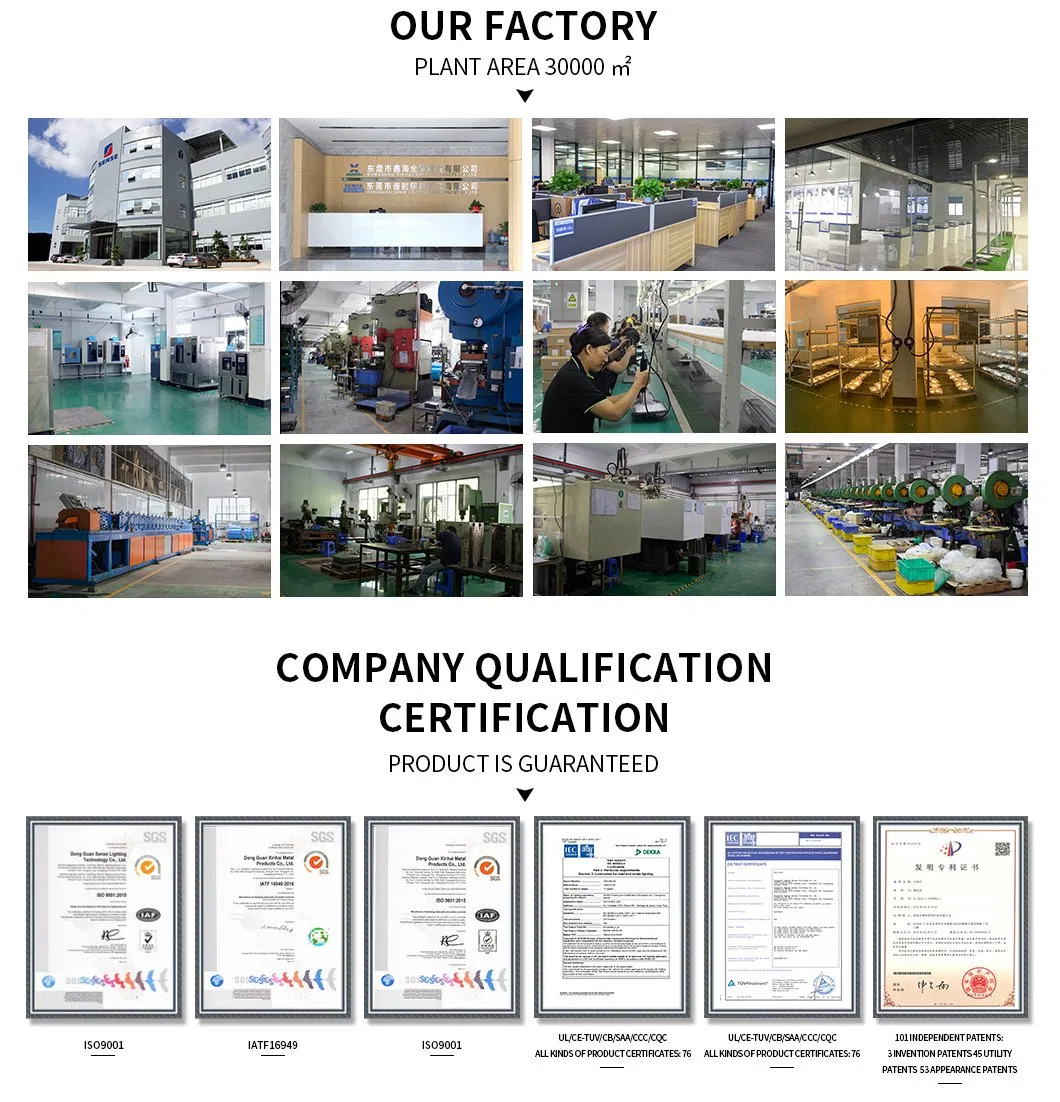

Yes, we operate our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management systems since 2003.

What certifications do your products hold?

Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved, with comprehensive reports for IP66, IK10, and LM79/LM80.

Do you offer OEM/ODM services?

Yes, we provide full OEM and ODM support, including custom LOGO placement on products and packages to meet different application requirements.

What is the standard warranty period?

We provide a 5 to 7-year warranty depending on specific customer requests and application environments.

What is the typical lead time for orders?

Samples are typically ready within 3-7 days, while mass production takes 10-20 days depending on the total order quantity.

How do you handle product quality issues?

Our defect rate is maintained below 0.1%. For any faults within the warranty period, we provide new replacements or repair services depending on the situation.
