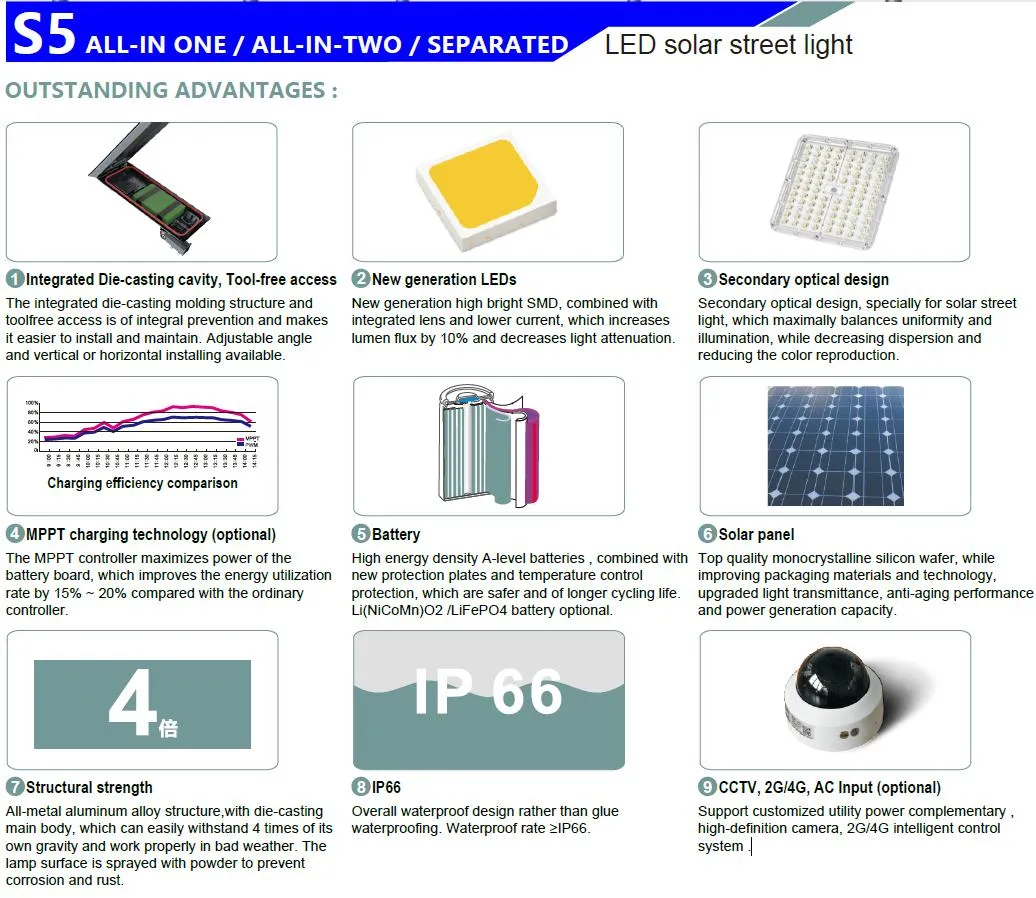

Product Parameters & Highlights
◈

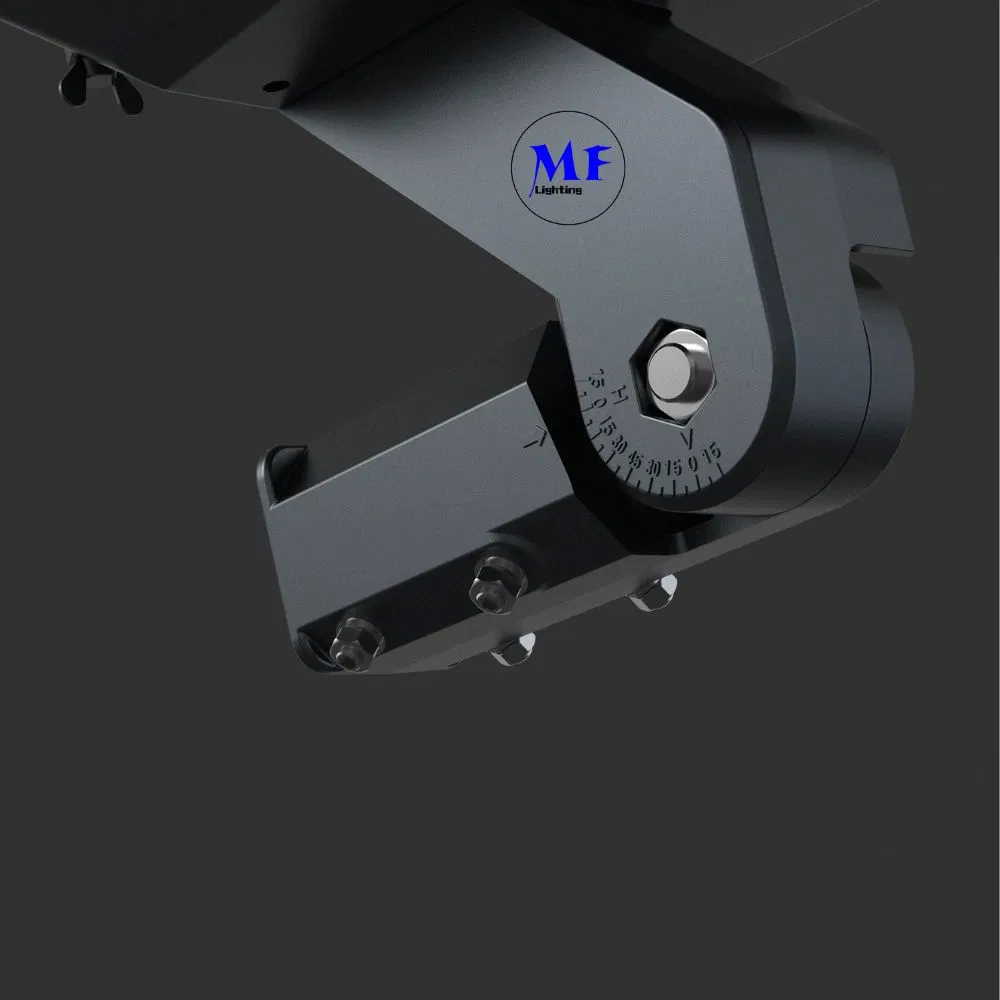

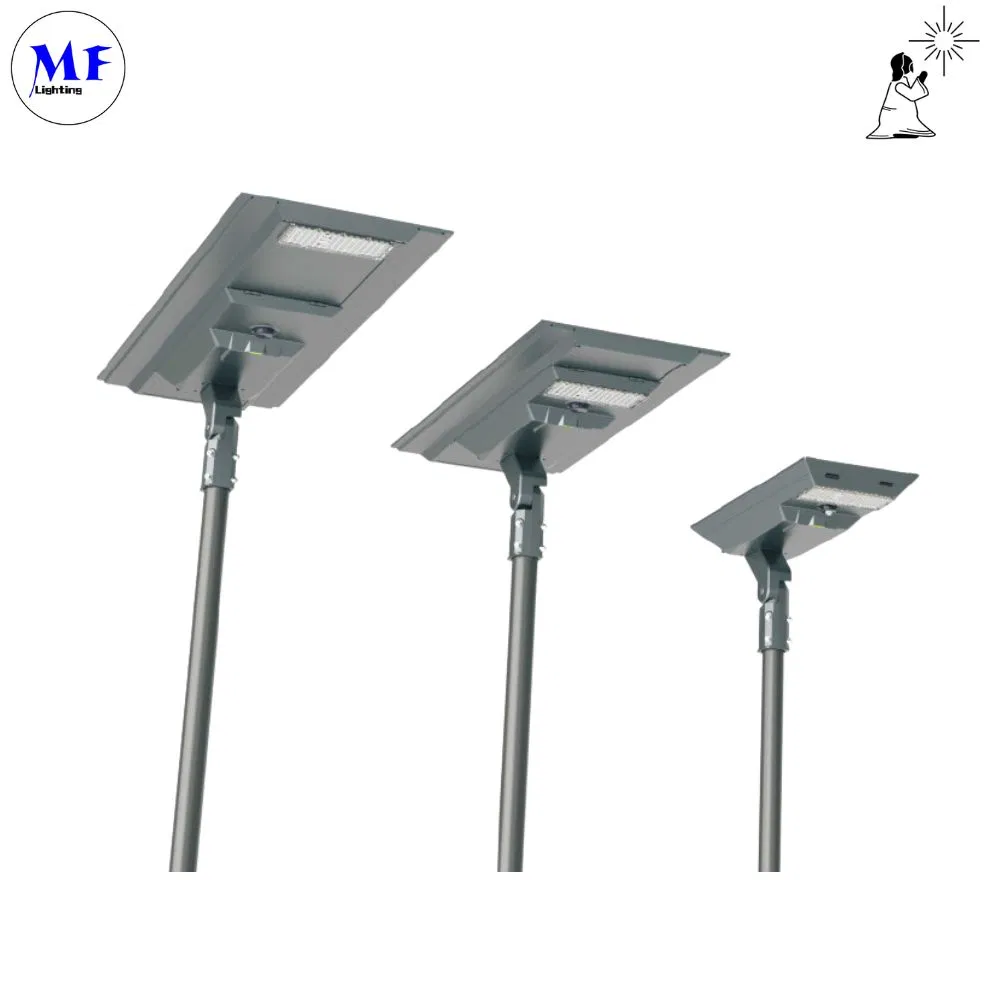

Integrated die-casting molding structure with tool-free access for easy installation and maintenance. Adjustable angle for vertical or horizontal mounting.
◈

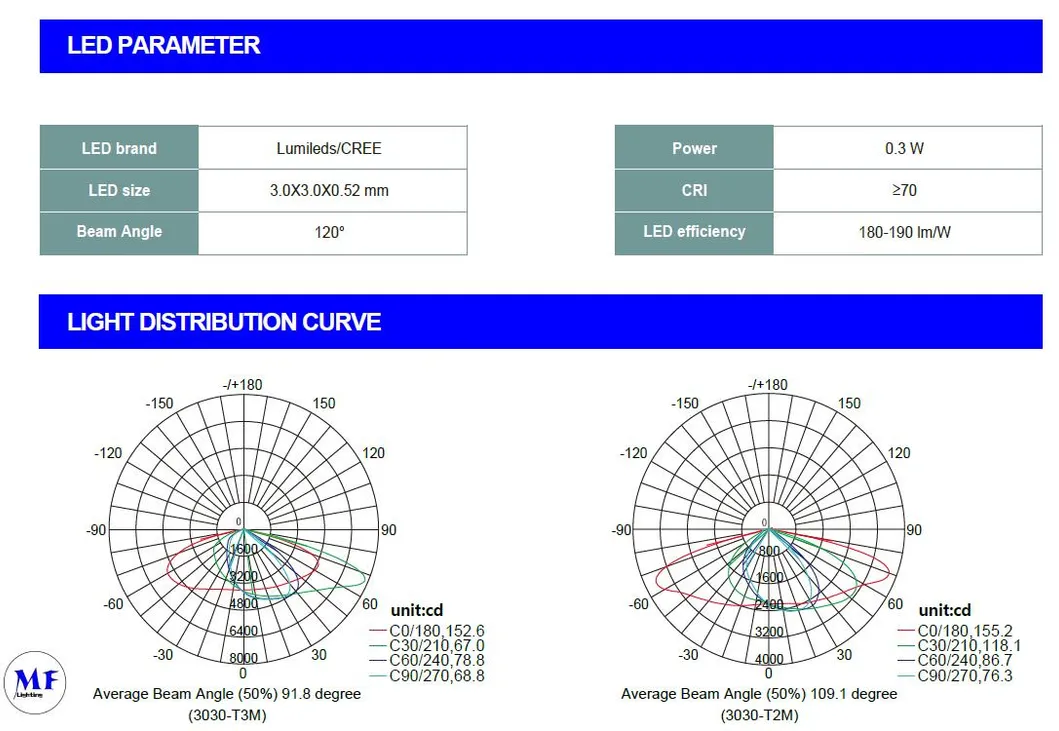

New generation high-bright SMD combined with integrated lens, increasing lumen flux by 10% and decreasing attenuation.
◈
Advanced MPPT controller maximizes battery board power, improving energy utilization by 15%~20%.
◈
High energy density A-level LiFePO4 batteries with temperature control protection for longer life and safety.
◈
All-metal aluminum alloy body withstands 4x its gravity; powder-sprayed surface prevents corrosion and rust. Waterproof rate ≥IP66.

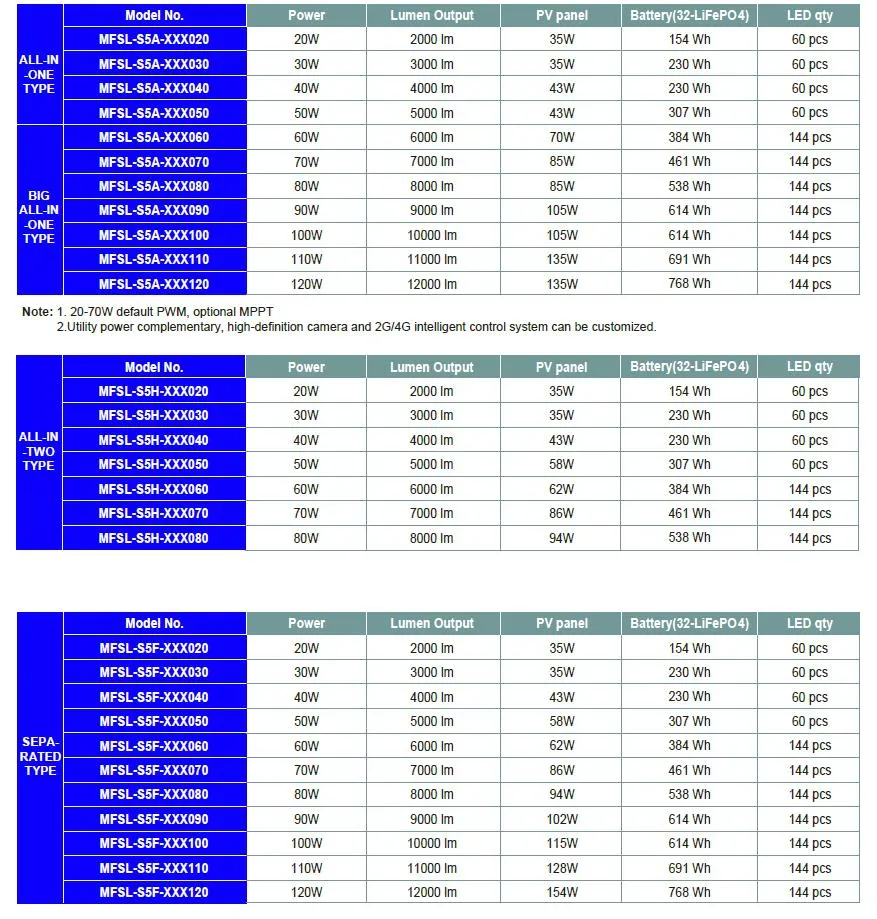

| Model No. |
Watts |
LED |
Lumen |
Solar Panel |
Battery Type |
Capacity |
Charge Time |
Discharge Time |
Controller |
IP Grade |
| MFSL-S5A-BX020 | 20W | Philips LED | 2000lm | 36W | LiFePO4 | 154 WH | 12h | 3 days | PWM | IP66 |
| MFSL-S5A-BX040 | 40W | Philips LED | 4000lm | 45W | LiFePO4 | 230 WH | 12h | 3 days | PWM | IP66 |
| MFSL-S5A-BX060 | 60W | Philips LED | 6000lm | 70W | LiFePO4 | 384 WH | 12h | 3 days | PWM | IP66 |
| MFSL-S5A-BX080 | 80W | Philips LED | 8000lm | 83W | LiFePO4 | 538 WH | 12h | 3 days | MPPT | IP66 |
| MFSL-S5A-BX100 | 100W | Philips LED | 10000lm | 105W | LiFePO4 | 614 WH | 12h | 3 days | MPPT | IP66 |
| MFSL-S5A-BX120 | 120W | Philips LED | 12000lm | 135W | LiFePO4 | 768 WH | 12h | 3 days | MPPT | IP66 |

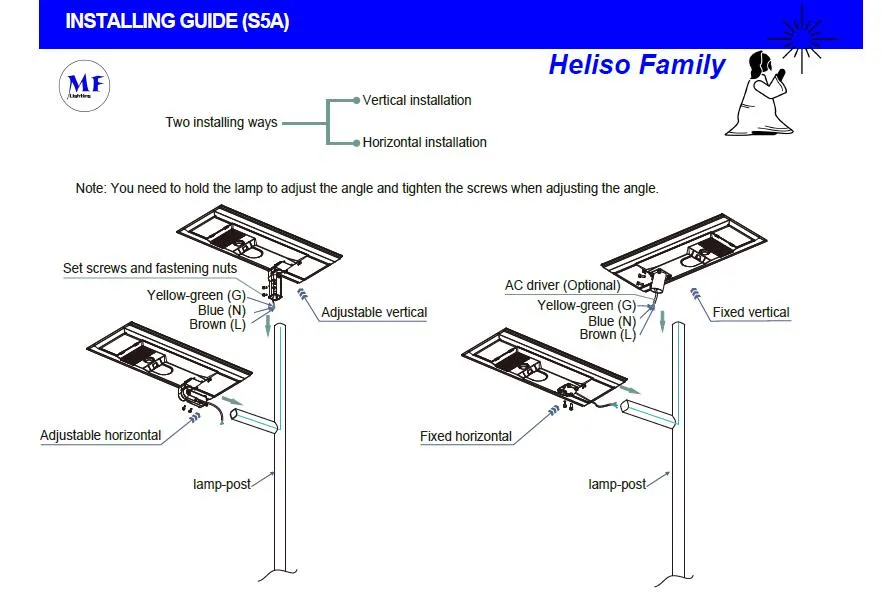

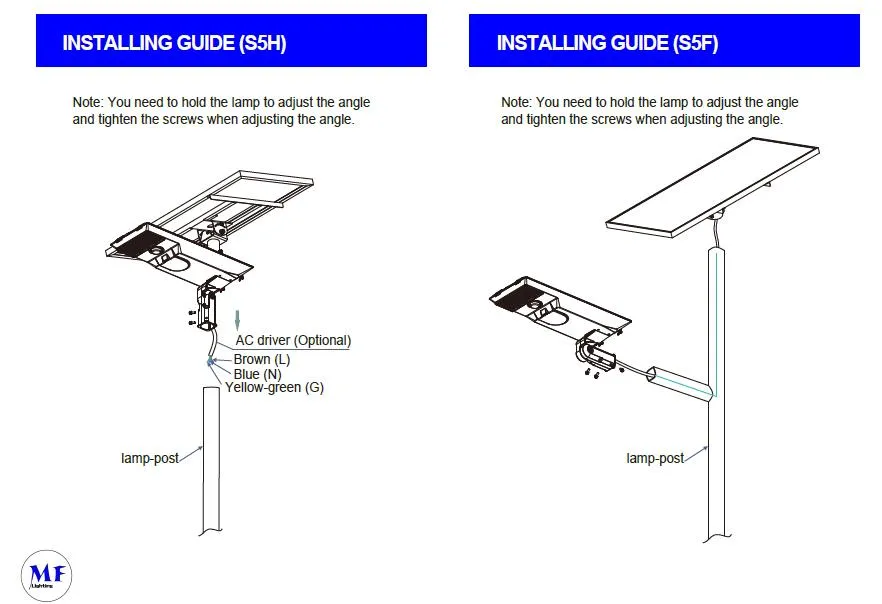

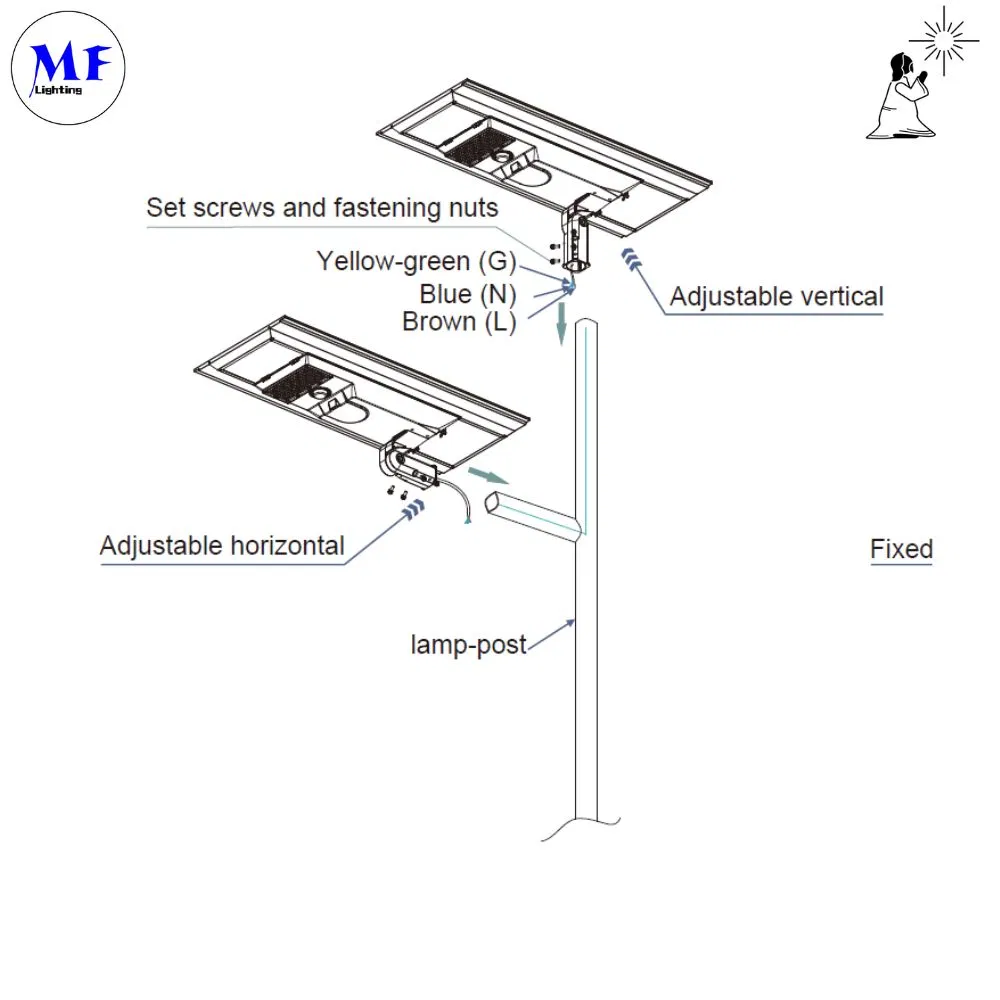

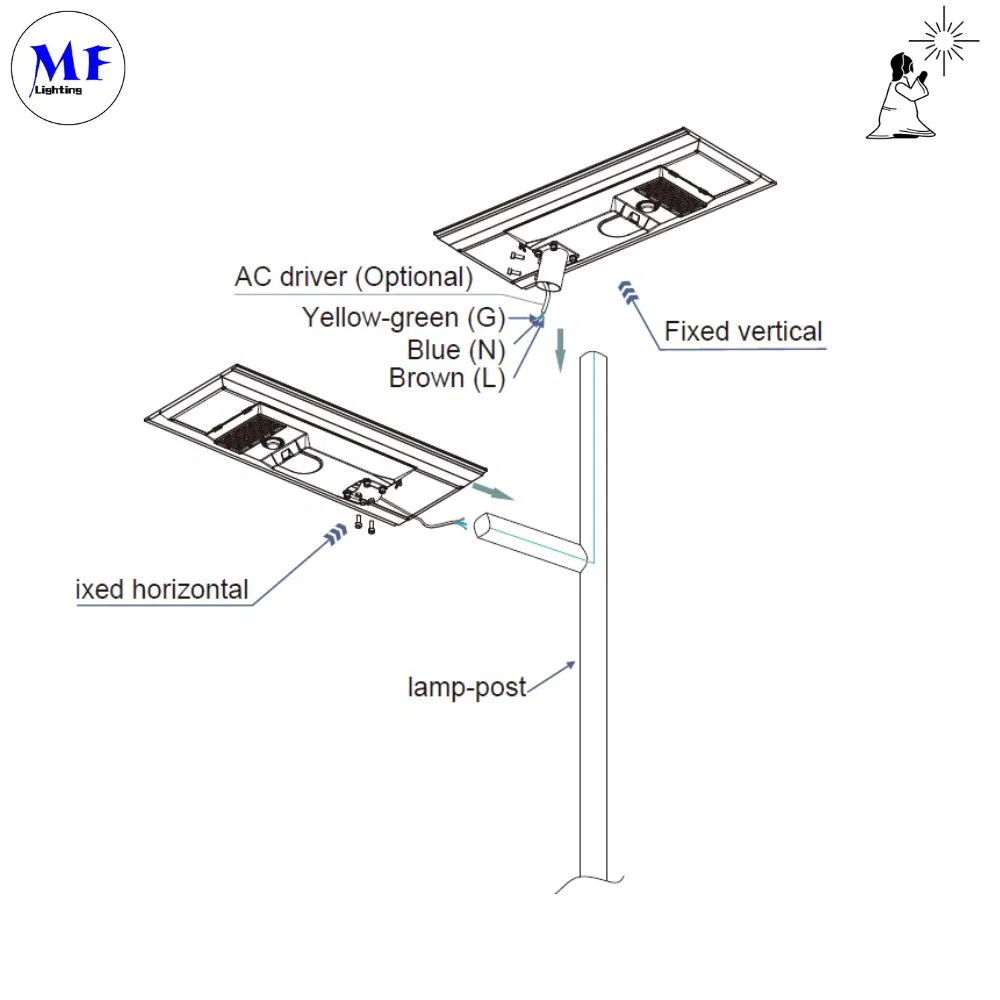

Installation Instructions
Solar street lights are easy to install, requiring no complex circuits. Simply prepare a cement base and fix the pole with galvanized bolts. The process eliminates the need for stringing cables or trenching.

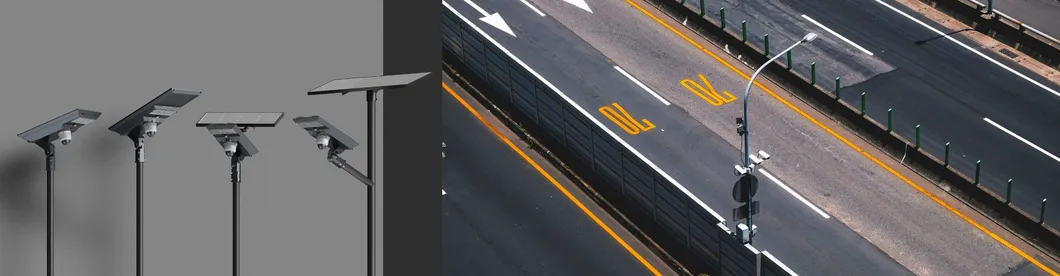

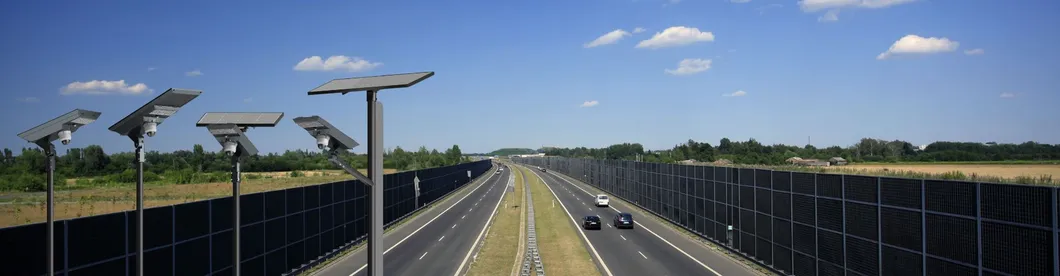

Application & Working Principle
Solar energy is a clean, pollution-free, and renewable source. During the day, solar panels convert sunlight into electricity to charge the battery pack. At night, the battery powers the LED light source automatically.
Frequently Asked Questions
How long can these solar street lights work on rainy days?
The high-capacity battery system is designed to ensure normal operation for more than 15 consecutive cloudy or rainy days depending on the configuration.
What is the lifespan of the LED and solar module?
The solar cell modules have a lifespan of up to 25 years, while the ultra-bright LED light source can last more than 50,000 hours.
Is the installation of these lights complicated?
No, it is very simple. There is no need for complex wiring or trenching. You only need to build a concrete base and fix the pole with provided bolts.
Are the solar street lights resistant to strong winds?

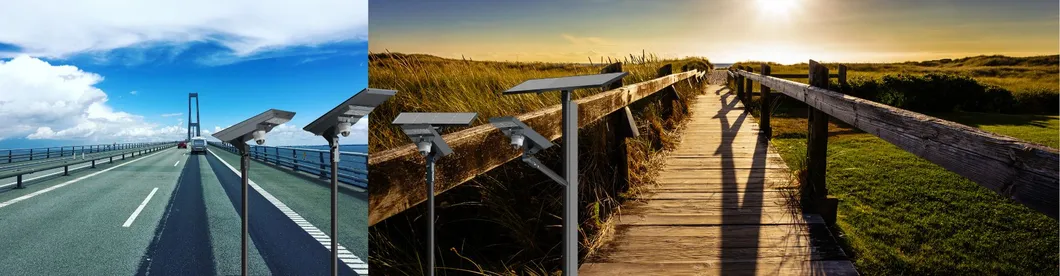

Yes, the structure and solar panel brackets are designed to withstand wind speeds up to 27m/s (Category 10 typhoon) or even 35m/s depending on the specific design requirements.
What safety features does the controller have?
The intelligent DC controller includes overcharge protection, over-discharge protection, light and time control, reverse polarity protection, and lightning protection.
Can these lights be used in extreme temperatures?
Yes, the systems are designed to operate in environmental temperatures ranging from -50 ºC to +70 ºC and at altitudes up to 5000M.
